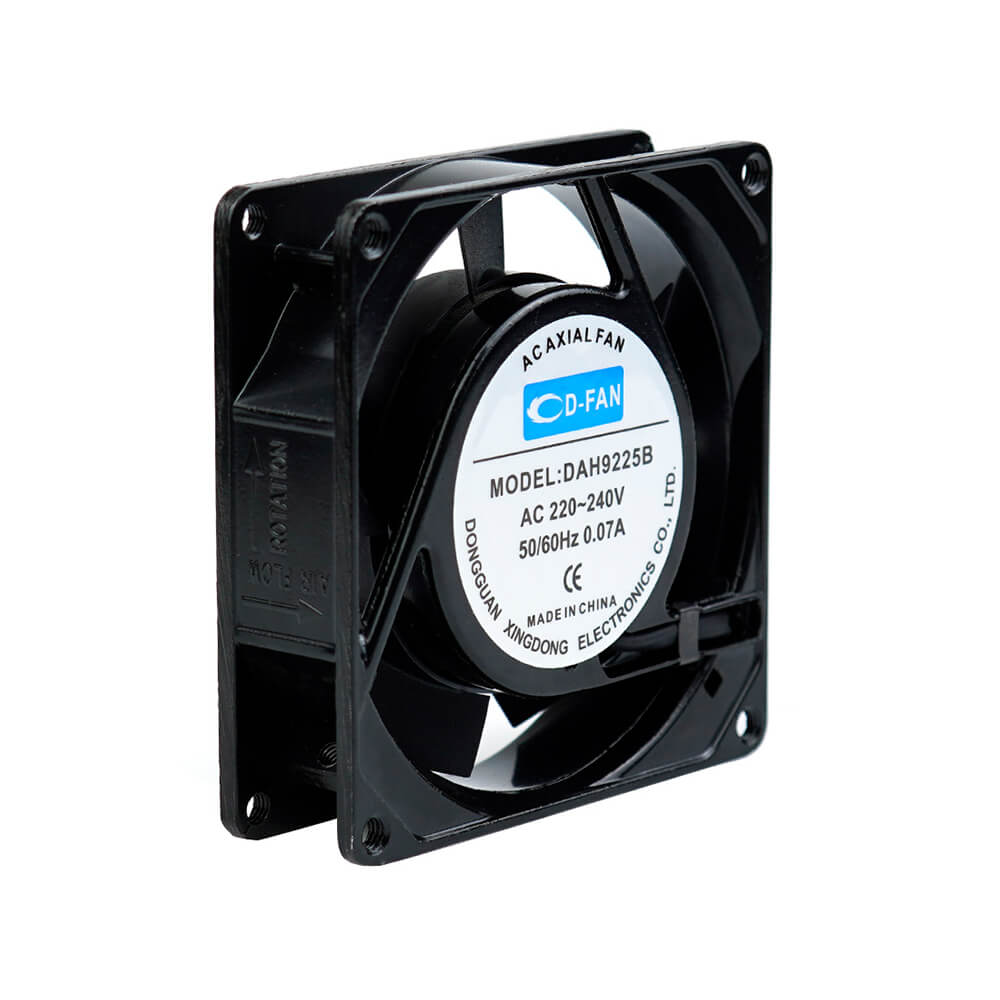

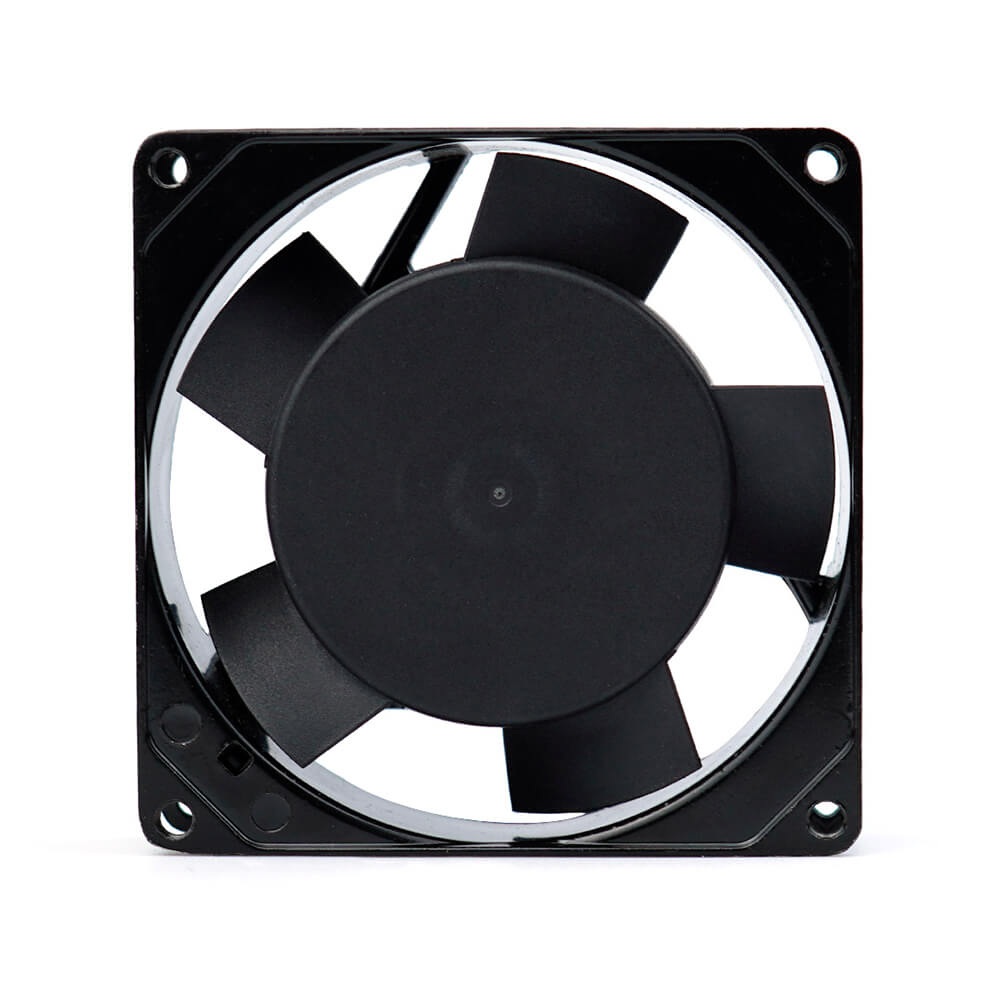

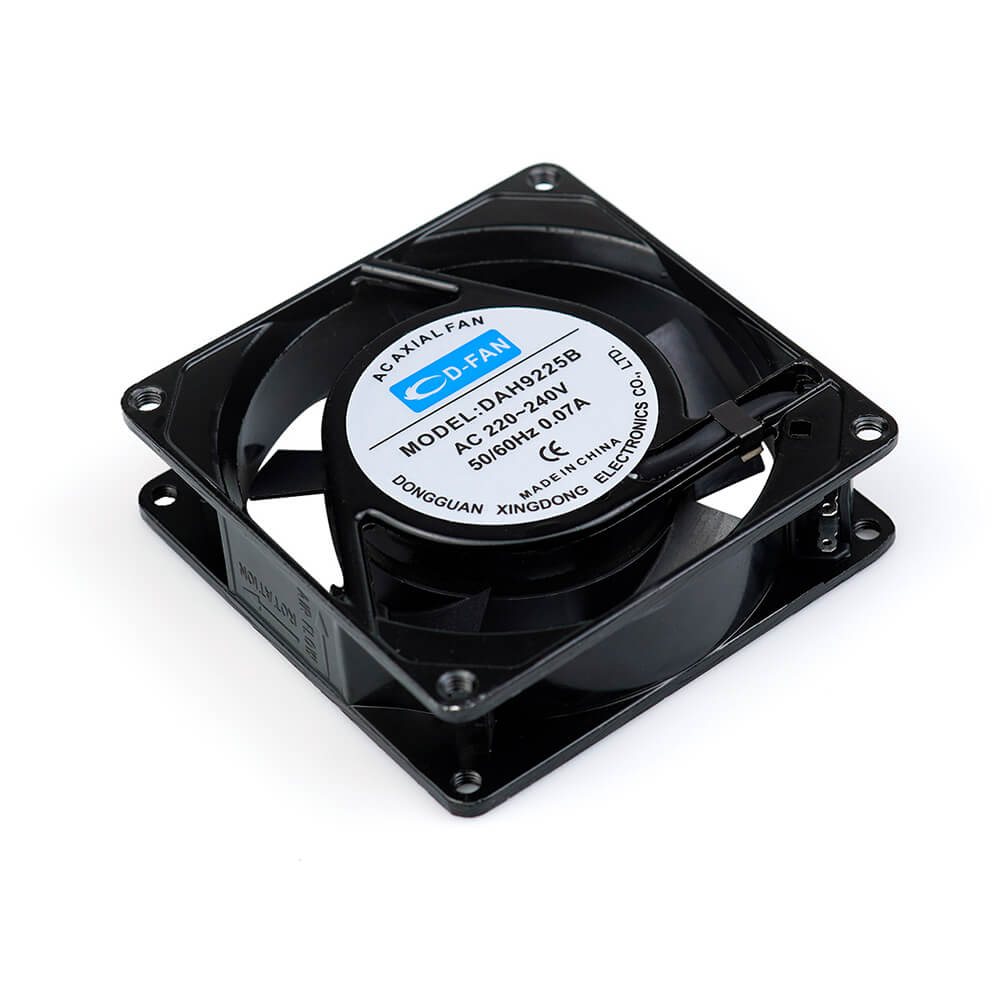

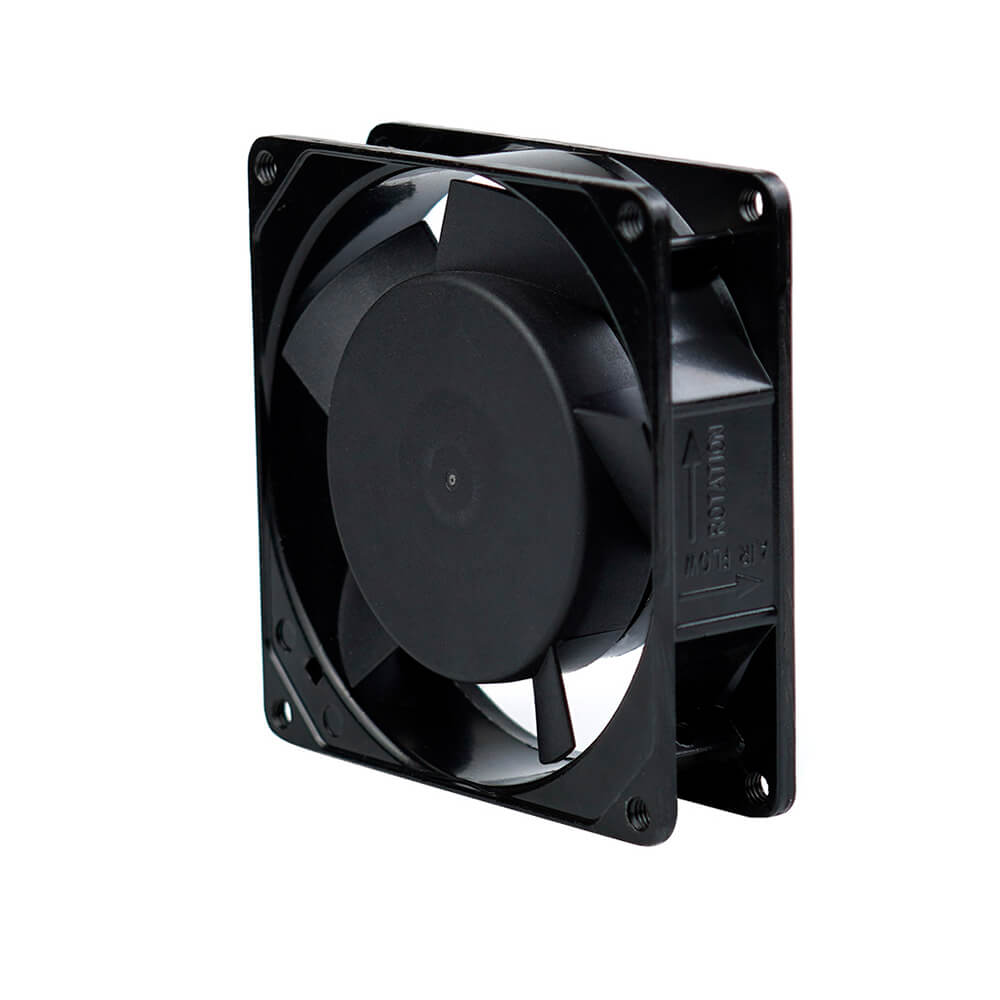

The AC Axial Fan 9225 is meticulously engineered to deliver efficient and dependable cooling within a compact size of 92mm x 92mm x 25mm. This fan operates across a broad voltage range (typically 100-240V AC) and is designed to provide airflow between approximately 40.9 to 81.8 CFM (1.16 to 2.32 m³/min), depending on the specific model and operating speed, which generally falls between 2200 and 3600 RPM. Featuring dual ball bearings, this fan guarantees a long service life of up to 70,000 hours, ensuring consistent performance even during continuous operation.
The frame and impeller are constructed from thermoplastic PBT reinforced with fiberglass (30% for the frame and 15% for the impeller), both of which are rated UL94-V0 for flame resistance, ensuring durability and safety in challenging environments. The fan design includes locked rotor protection and complies with UL, CE, and RoHS certifications, confirming its safety, environmental compliance, and adherence to regulations.
Noise levels range from 27 dBA to 41 dBA, depending on the speed and model variant, effectively balancing airflow efficiency with quiet operation. The operating temperature range is from -10°C to +70°C, making it suitable for a variety of industrial and commercial applications.
As a premier supplier of AC Axial Fans, we specialize in providing customized solutions for the AC Axial Fan 9225 to meet specific client needs. Our customization options include:
Voltage and Speed Modifications: Fans can be adjusted to operate at various voltages (5V, 12V, 24V, 48V) and speeds to optimize performance for specific applications.
Functional Enhancements: Integration of advanced features such as tachometers (frequency generators), rotation detection, pulse width modulation (PWM) control, temperature regulation, alarm signal outputs, and dual-speed operation.
Material and Structural Adjustments: Custom materials or coatings for the frame and impeller to enhance corrosion resistance or provide environmental protection (e.g., IP54, IP56, or IP67 ingress protection levels).
Lead Wire and Connector Customization: Tailored lead wire lengths, types, and connectors to facilitate installation.
OEM/ODM Services: Custom logo printing, packaging design, and product labeling to align with client branding.
Our production process for the AC Axial Fan 9225 includes:
Material Selection: Utilization of high-quality thermoplastic PBT reinforced with fiberglass for enhanced strength and flame resistance.
Precision Molding: Injection molding of frames and impellers to exact specifications, ensuring dimensional accuracy and balance.
Motor Assembly: Incorporation of impedance-protected shaded pole or brushless DC motors with dual ball bearings for durability and smooth operation.
Quality Assurance: Comprehensive testing, including airflow measurement in wind tunnels, noise level evaluation, electrical safety inspections, and endurance testing to ensure performance and compliance.
Final Assembly: Careful installation of fan guards, wiring, and packaging, ensuring safe transport and ease of installation.
