Dongguan Xingdong Electronics Co., Ltd. is a well-established manufacturer of the DC Axial Fan 9238, providing high-quality cooling solutions to clients around the globe for nearly two decades. As a high-tech enterprise with its own industrial park, a workforce of over 300 skilled professionals, and state-of-the-art production technology, Xingdong achieves exceptional production efficiency, boasting a monthly output of 1.8 million units. Our dedication to maintaining consistent quality and delivering outstanding customer service has earned us the trust of clients across various industries worldwide.

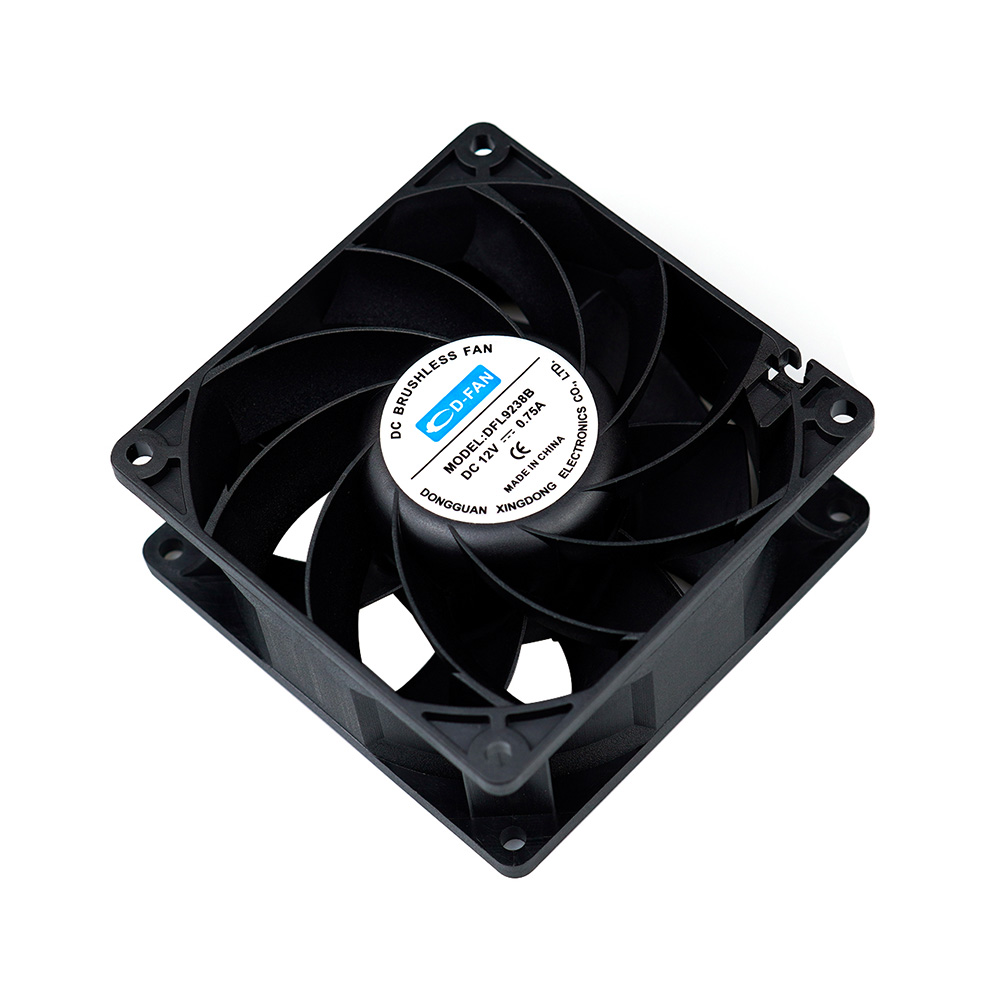

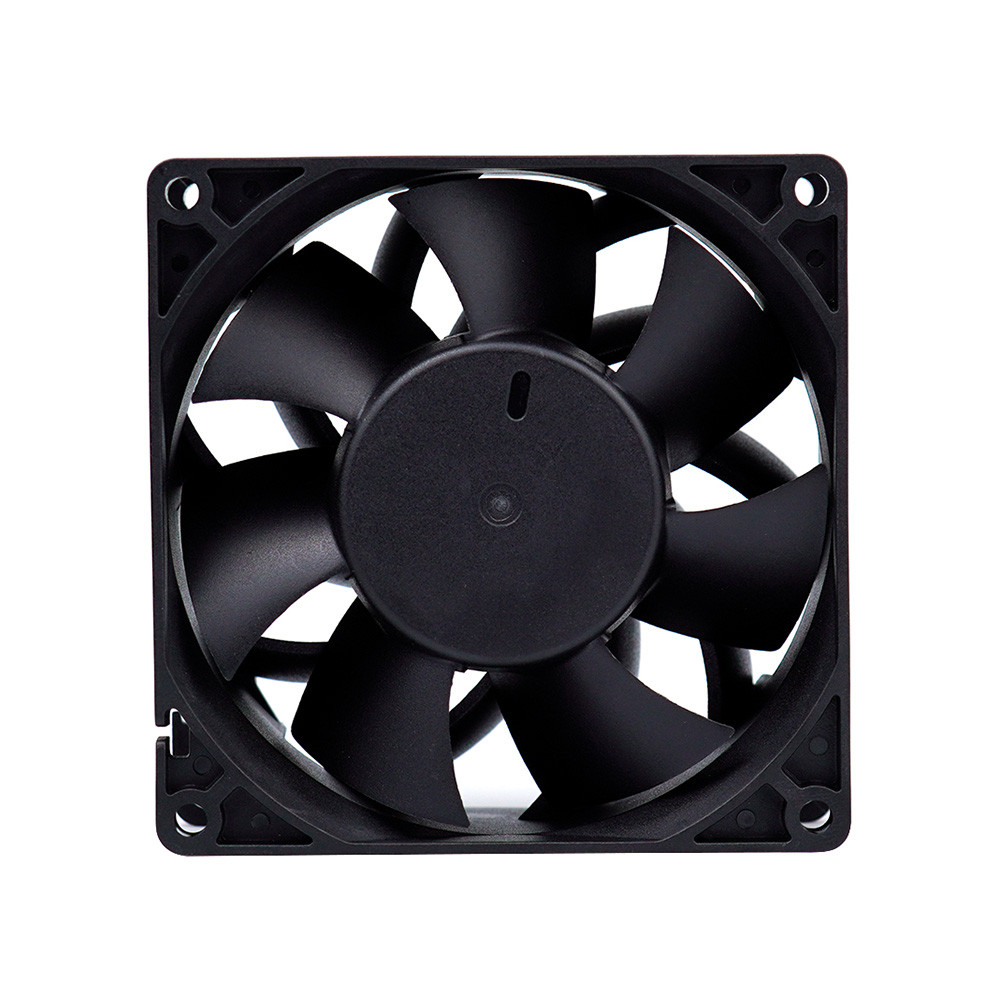

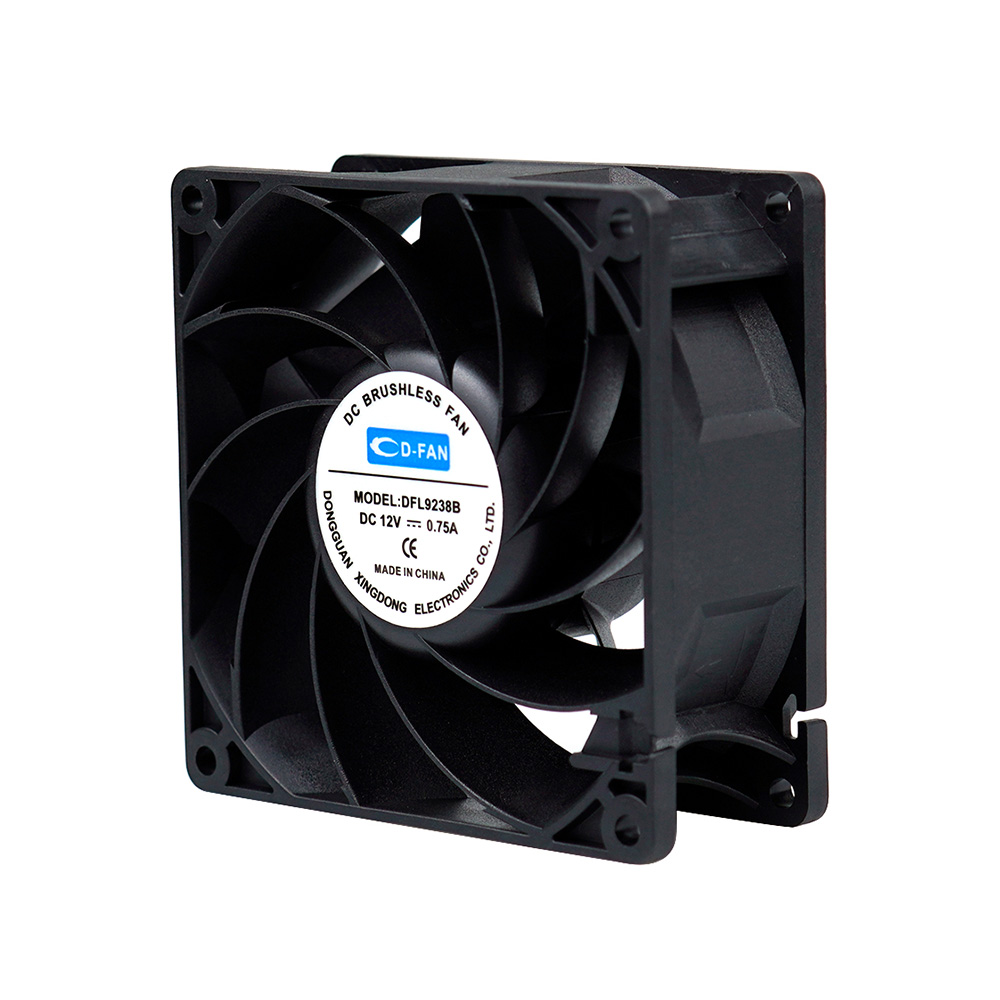

The DC Axial Fan 9238 is engineered for high-efficiency airflow and static pressure performance within a compact housing of 92mm x 92mm x 38mm. This model is perfectly suited for a variety of demanding applications, including industrial machinery, power systems, telecommunications equipment, and medical devices.
Equipped with a brushless DC motor, the 9238 fan provides excellent energy efficiency, a long operational lifespan, and quiet operation. It ensures effective cooling even in environments with limited space or high heat, thereby enhancing the longevity and stability of your electronic systems.
As a specialized manufacturer of the DC Axial Fan 9238, Xingdong offers a broad range of customization options to address specific thermal management needs:
Voltage Options: Available in 12V, 24V, and 48V DC to ensure compatibility with various electrical systems.
Speed Range: Adjustable speeds from 3,200 to 8,000 RPM for optimized airflow and noise management.
Bearing Options: Choose between dual ball bearings for enhanced reliability or sleeve bearings for cost-effective or quieter applications.
Smart Features: Options include PWM control, tachometer output, and safety features such as reverse polarity and locked rotor protection.
These customizable features enable customers to adapt the fan to their exact performance, noise, and durability requirements.
Xingdong’s status as a leading supplier of the DC Axial Fan 9238 is built on our stringent production and quality control standards. Our semi-automatic and fully automated production lines are equipped with advanced monitoring systems that oversee the entire manufacturing process, from raw material inspection to final product testing.
Each fan undergoes comprehensive quality checks for:
Airflow and static pressure accuracy
Compliance with vibration and noise level standards
Electrical insulation and dielectric strength
Long-term operational stability
To ensure product integrity, all components are constructed from high-grade, UL94V-0 flame-retardant PBT plastic for both the frame and impeller, providing thermal resistance and safety in critical applications.
Feature Description | Specification |
Dimensions | 92mm x 92mm x 38mm |
Voltage Options | 12V, 24V, 48V DC |
Speed Range | 3,200 to 8,000 RPM |
Max Airflow | Up to 166.7 CFM |
Static Pressure | Up to 36.83 mm H2O |
Noise Level | 37–65 dBA (depending on model) |
Bearing Type | Dual ball (standard), sleeve (optional) |
Motor Protection | Reverse polarity, locked rotor |
Material | UL94V-0 rated PBT plastic |
Operating Temp | -10°C to +70°C |
Weight | Approx. 0.20–0.28 kg |
