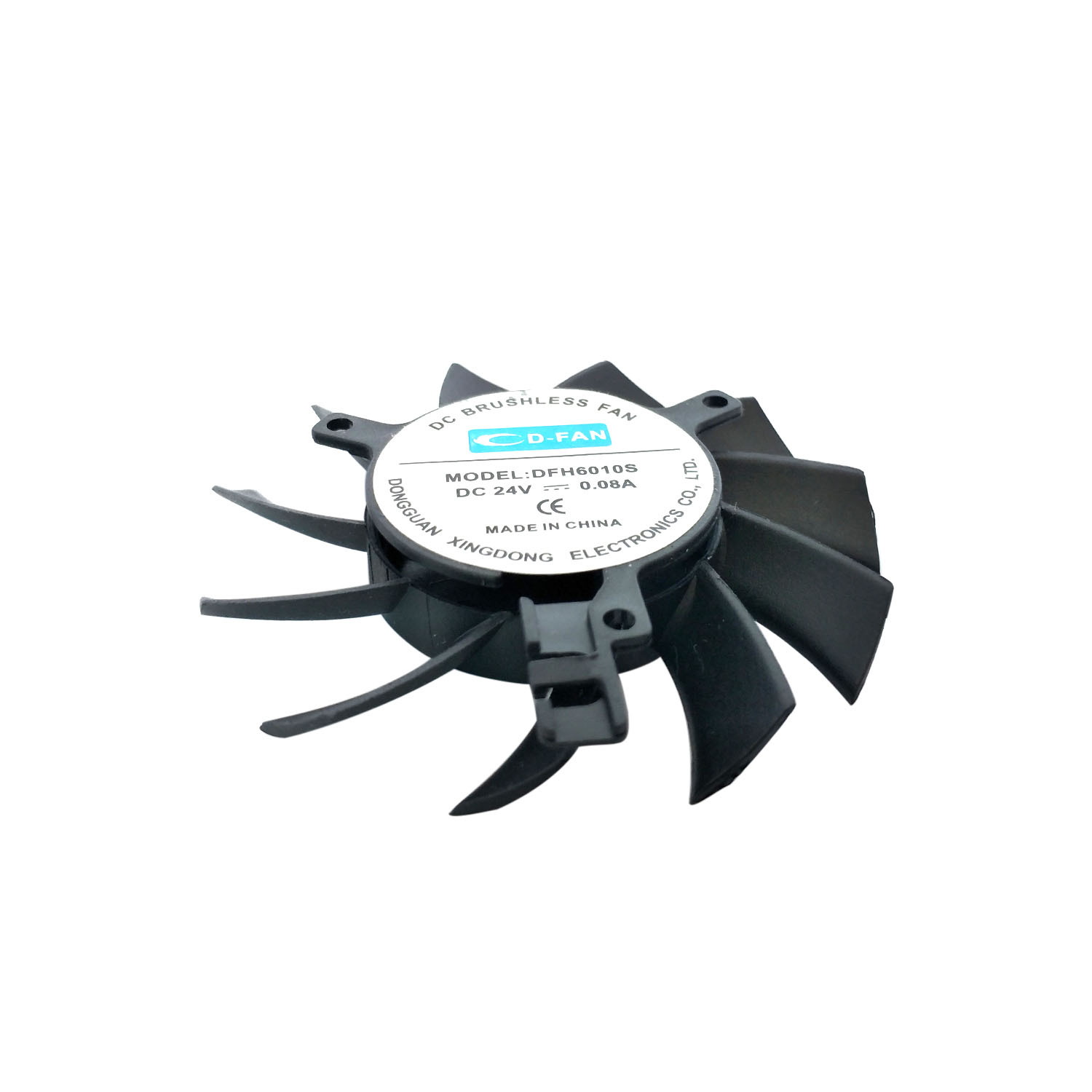

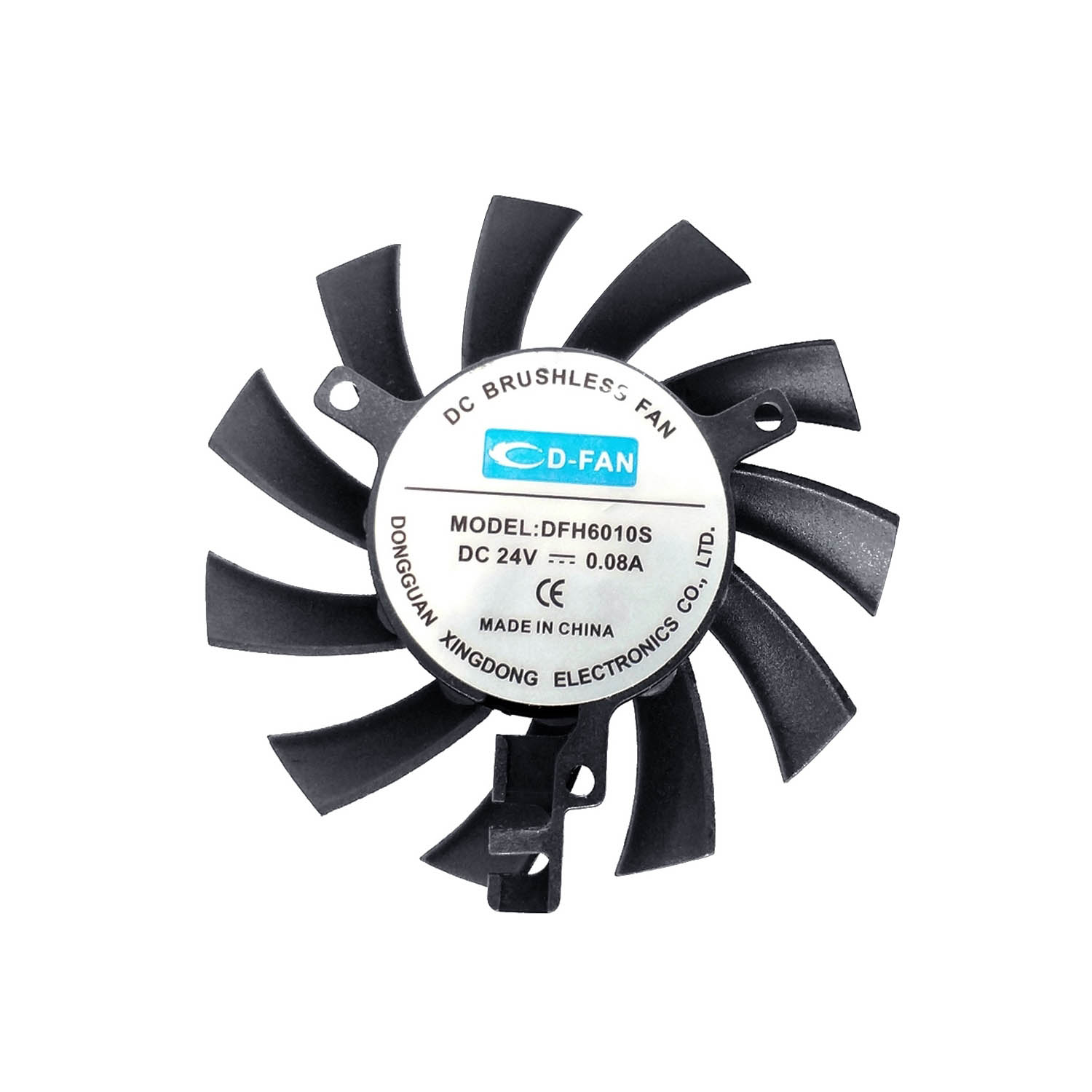

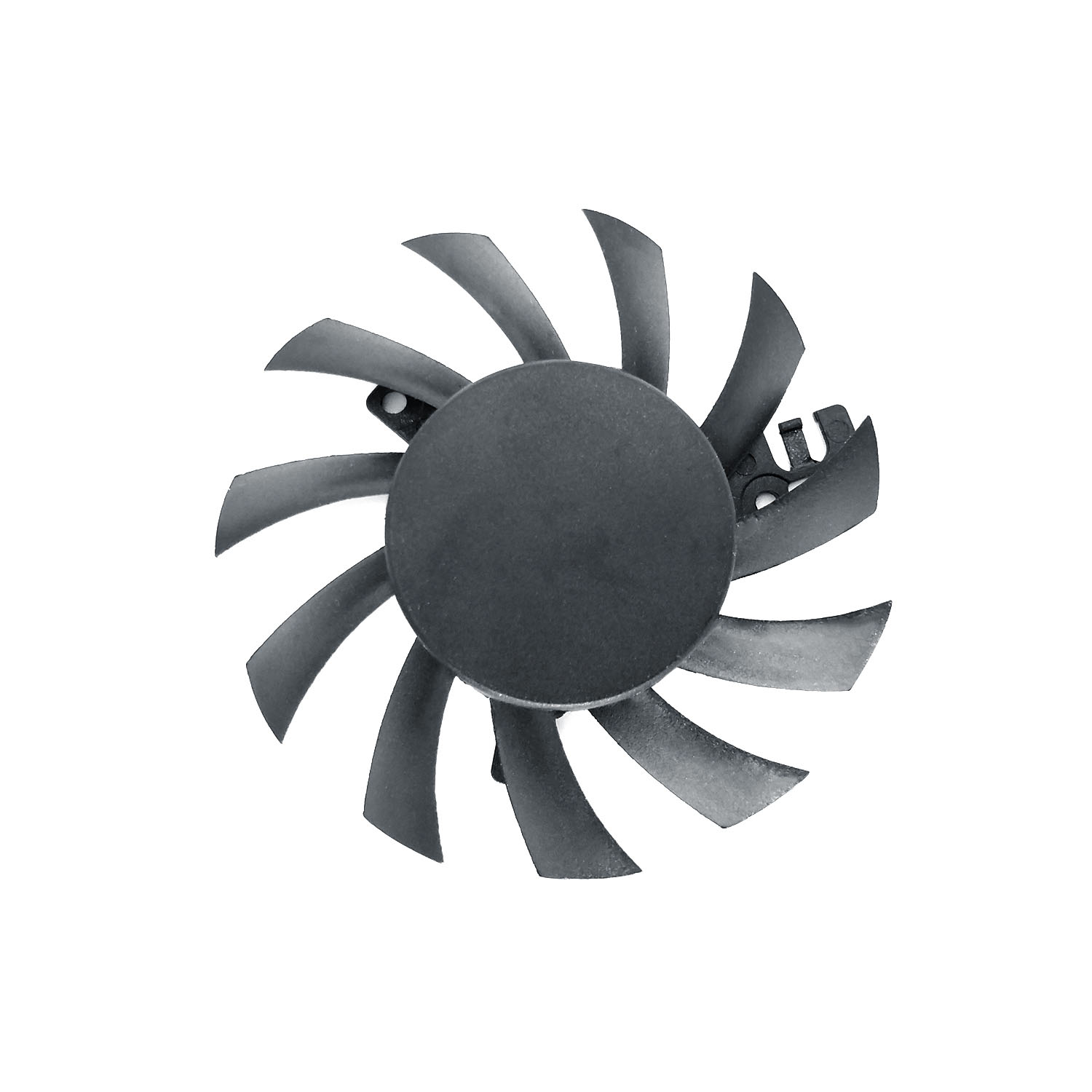

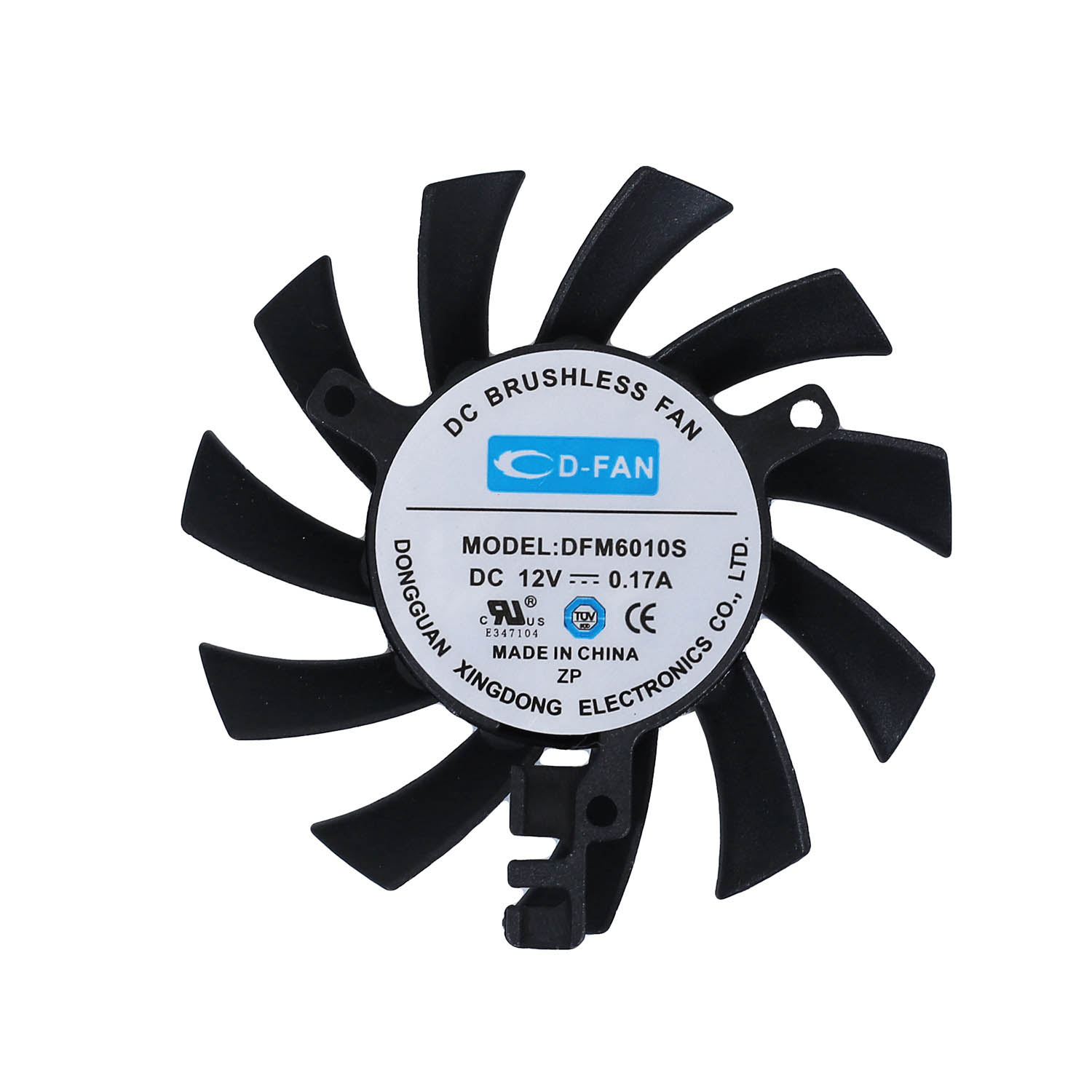

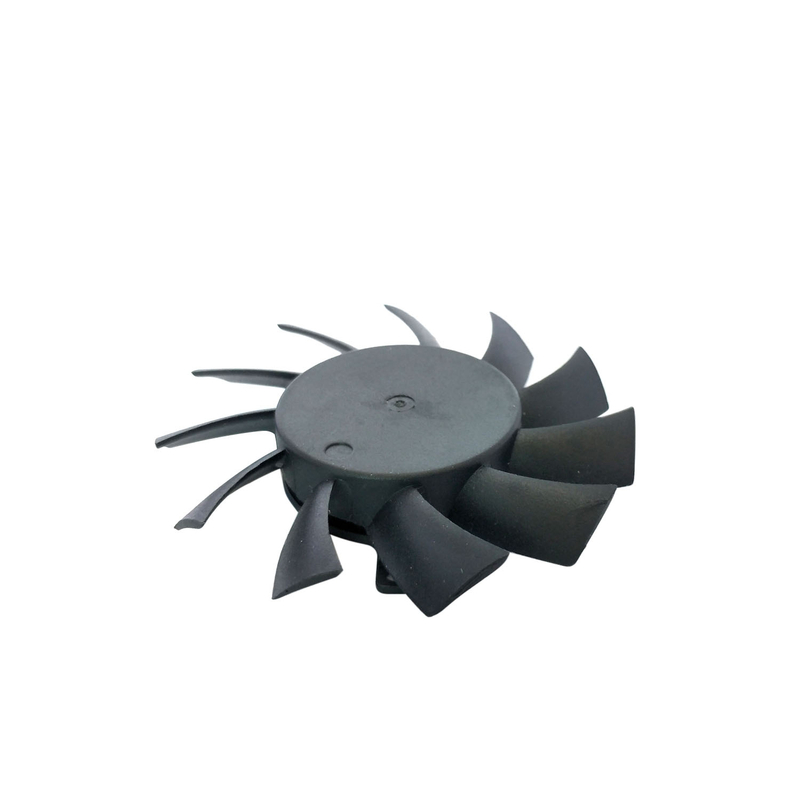

Frameless Fan 6010

The Frameless Fan 6010 is a compact, high-efficiency cooling solution with dimensions of 60mm × 60mm × 10mm, specifically designed for applications where space is constrained and noise reduction is essential. Unlike conventional fans, the frameless design removes the bulky outer frame, resulting in a slimmer profile that allows for easier integration into tight spaces. This makes the Frameless Fan 6010 an excellent option for modern cooling requirements in the refrigeration sector and beyond.

Materials and Construction Quality

The Frameless Fan 6010 is constructed from high-quality materials to ensure durability, safety, and optimal performance:

• Frame and Impeller: Both components are manufactured from thermoplastic PBT reinforced with glass fiber (30% for the frame and 15% for the impeller), complying with UL94-V0 flame retardant standards. This provides excellent mechanical strength, heat resistance, and longevity.

• Lead Wires: Utilizes UL1007 standard wires with precise lengths and AWG 26 gauge for reliable electrical connections.

• Bearings: Features dual ball bearings, allowing the fan to achieve an operational lifespan of up to 70,000 hours, ensuring stable and quiet performance.

Power and Performance

The Frameless Fan 6010 operates efficiently across various voltage options, including 5V, 12V, and 24V DC, with power consumption ranging from approximately 0.77W to 2.88W depending on the specific model. It provides airflow between 13.82 and 19.87 CFM (0.39 to 0.56 m³/min) and operates at speeds ranging from 3200 to 4600 RPM. Noise levels are maintained at a low range, typically between 25 dBA and 35 dBA, making it suitable for environments sensitive to sound.

Application in the Refrigeration Sector

In the refrigeration industry, the Frameless Fan 6010 is essential for maintaining optimal temperatures and improving energy efficiency. Its compact size and frameless design enable seamless integration into refrigeration units, display cases, and cooling cabinets where space is limited. The fan’s quiet operation minimizes disturbances in both commercial and residential refrigeration applications, while its robust airflow effectively dissipates heat generated by compressors and electronic components.

Furthermore, the fan’s flame-retardant materials and extended lifespan enhance the safety and reliability of refrigeration systems. Its ability to function effectively within a temperature range of -10°C to +70°C ensures consistent performance even in demanding refrigeration environments.
