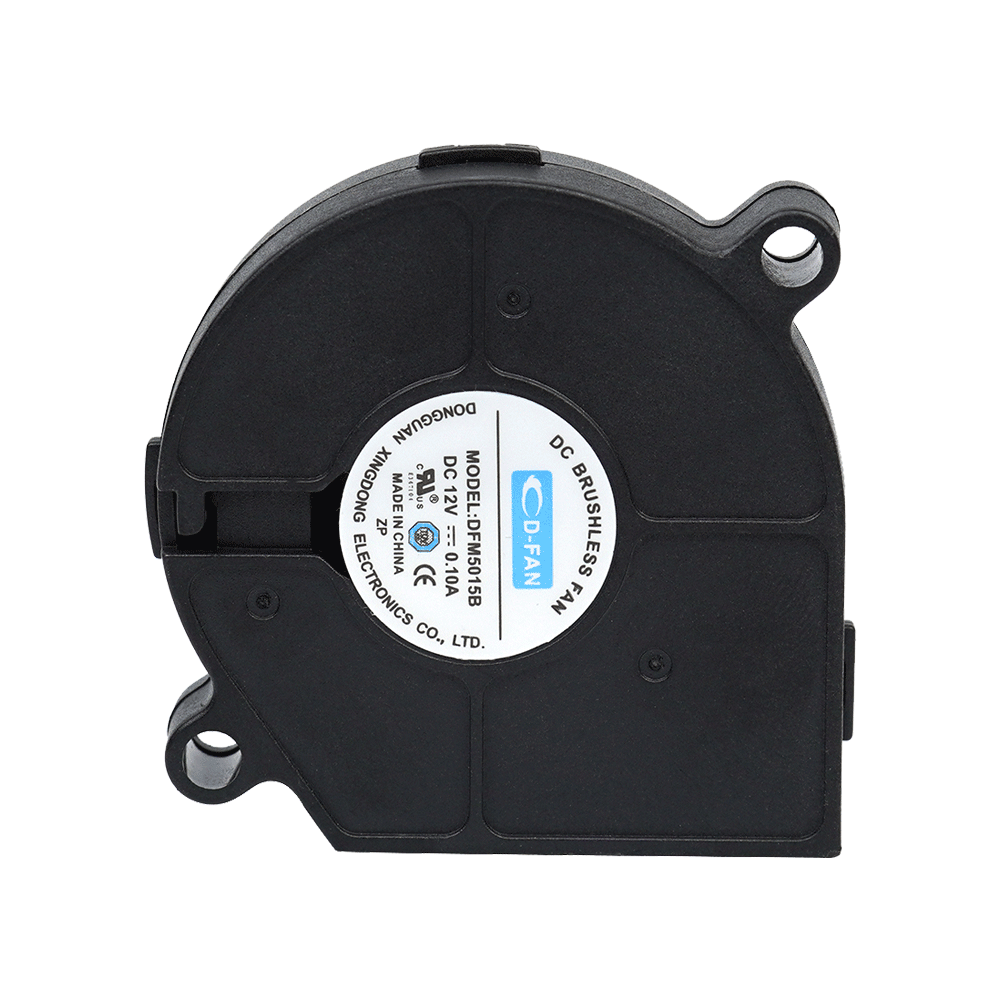

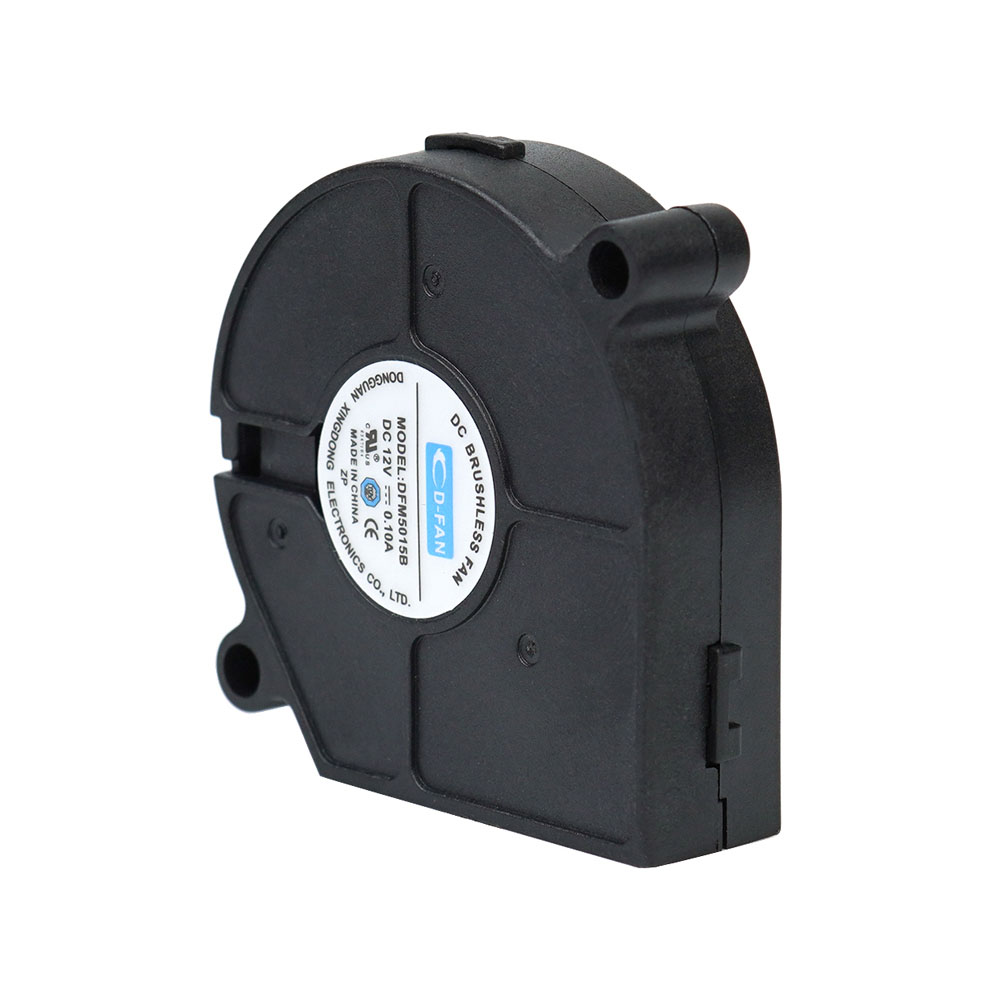

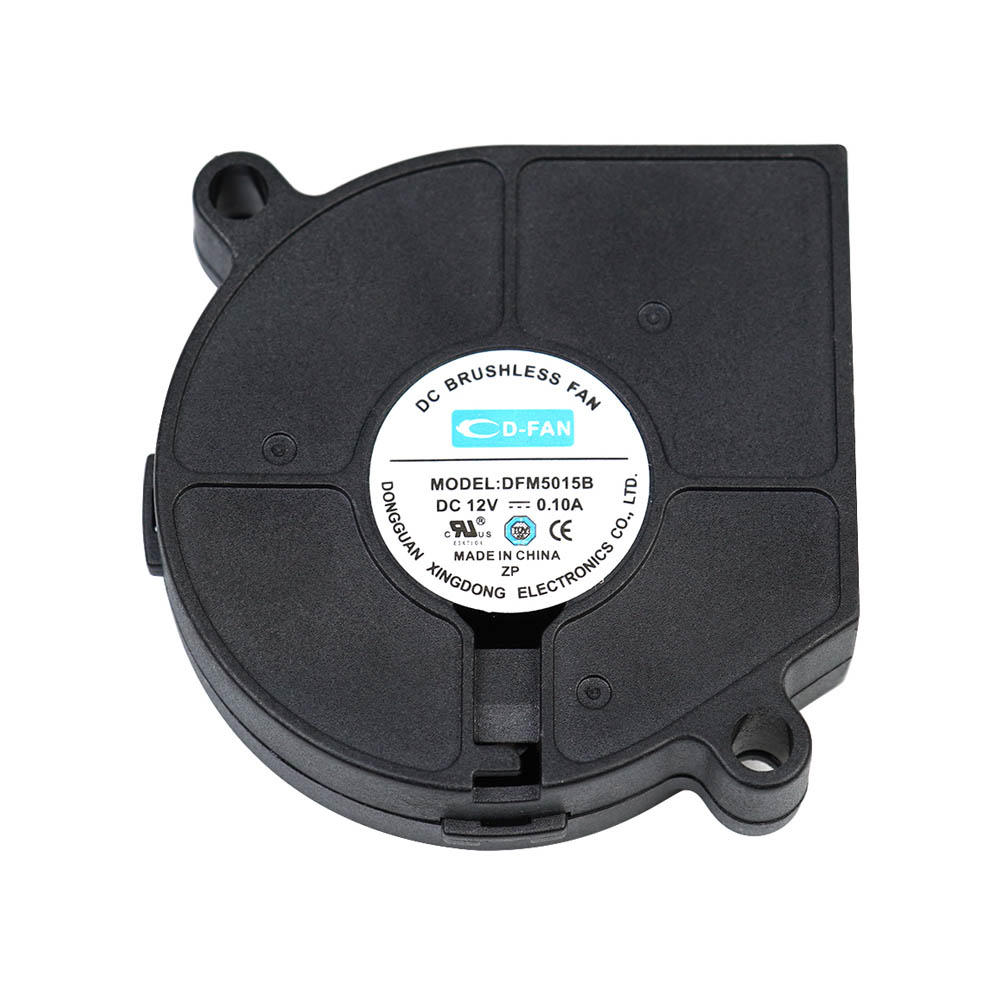

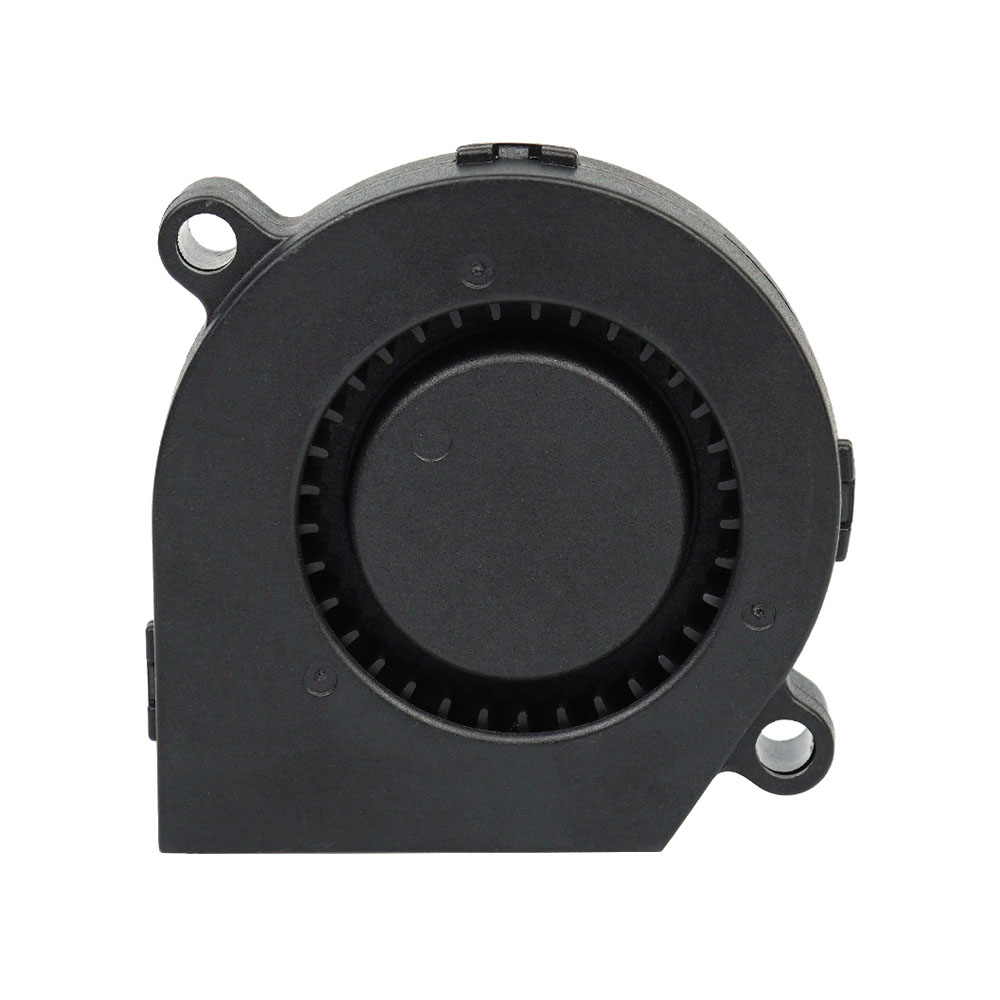

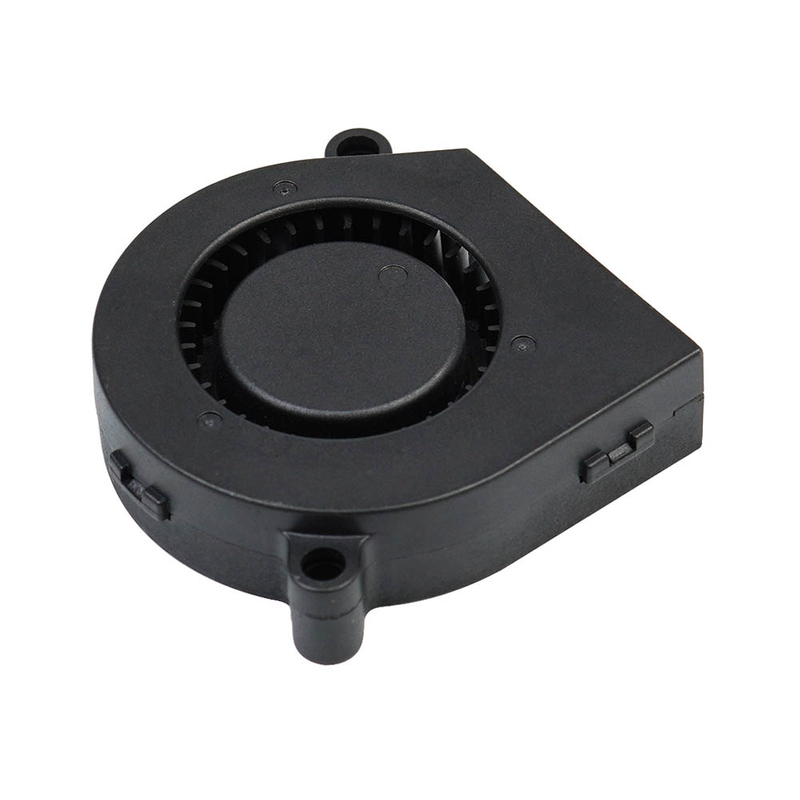

Introducing the DC Blower 5015: Precision Cooling with Enhanced Features

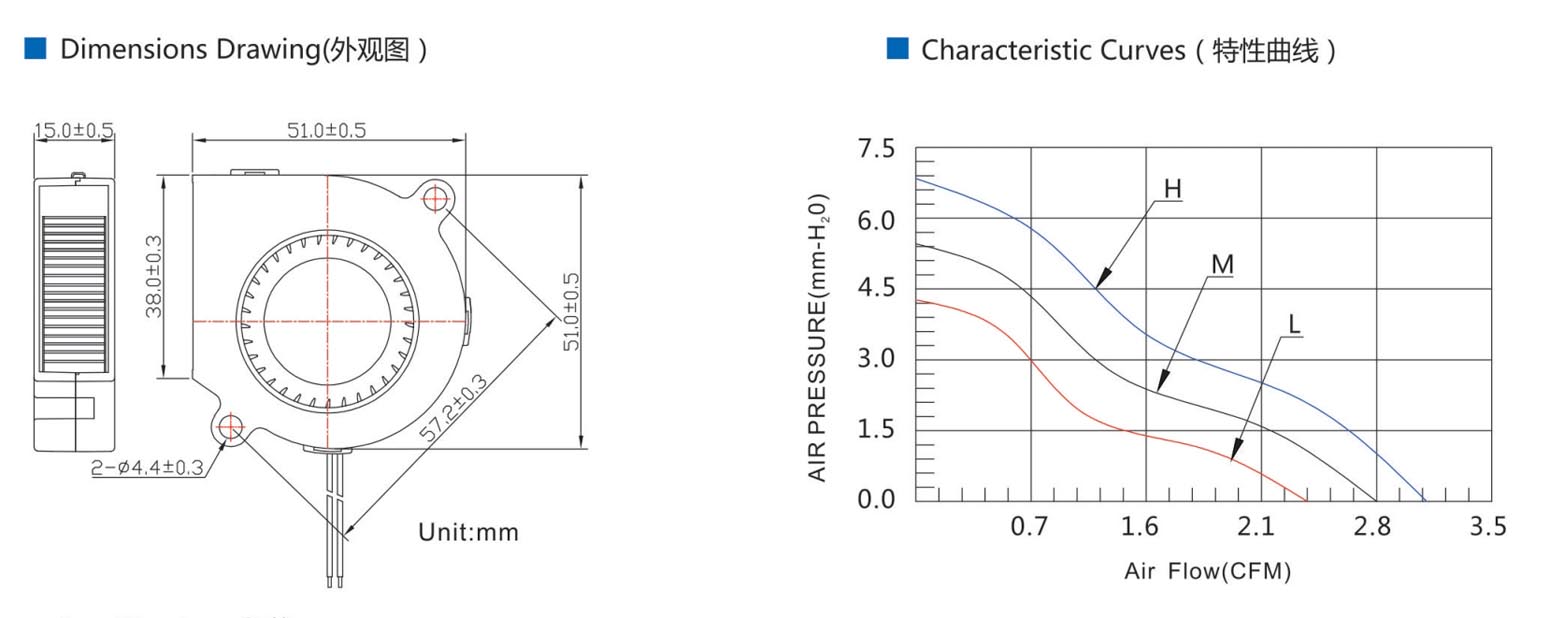

The DC Blower 5015 is a compact, high-efficiency centrifugal fan designed for applications that require focused airflow and dependable thermal management. With dimensions of 51mm x 51mm x 15mm, this blower is constructed from UL94V-0 rated PBT plastic for both the frame and impeller, ensuring flame resistance and durability in challenging operating conditions. It utilizes brushless DC motor technology, providing quiet, efficient performance with minimal maintenance.
Voltage Options: Available in 5V, 12V, and 24V DC variants to accommodate various power needs.
Speed Range: Models operate between 4,500 and 6,500 RPM, allowing for flexible airflow management.
Airflow & Pressure: Airflow capacity ranges from 0.08 to 0.14 m³/min, with a maximum static pressure of up to 22.35 mm H2O, making it suitable for overcoming resistance in compact systems.
Noise Level: Engineered for quiet operation, with noise levels ranging from 35 dBA to 45 dBA depending on the model and speed settings.
Motor Protection: Equipped with locked rotor protection and reverse polarity protection to enhance operational safety.
Operating Temperature: Reliable performance in temperatures from -10°C to +70°C, suitable for a variety of environments.
The DC Blower 5015 is designed for seamless integration into electronic devices and machinery that require targeted cooling. Its radial airflow design directs air precisely, making it ideal for cooling components such as heat sinks, 3D printer hot ends, and compact electronics. Installation is straightforward, featuring standard mounting screw holes and connector types for quick replacement or system upgrades.
Users can adjust fan speed using PWM signals on select models, allowing for dynamic thermal management that balances cooling efficiency with noise reduction. The blower’s brushless motor design ensures a long service life with minimal vibration and maintenance.
The DC Blower 5015 distinguishes itself from other product lines through:
Balanced Size and Performance: Its 51x51x15mm frame provides a compact footprint while delivering higher airflow and static pressure than smaller blowers like the 5008 series, which measures 50x50x8mm.
Advanced Motor Protection: Unlike some basic models, the 5015 includes features such as locked rotor and reverse polarity protections, preventing damage from electrical faults.
Multiple Speed Variants: The availability of various speed and power options (from 4,500 RPM to 6,500 RPM) allows for tailored solutions in noise-sensitive or high-performance environments.
Material Quality: The use of UL94V-0 PBT plastic for the frame and impeller enhances flame resistance and durability, surpassing standard plastics used in some competing models.
Signal Features: Certain models of the 5015 support tachometer feedback and PWM control signals, enabling integration into smart cooling systems for real-time monitoring and adjustments.
The DC Blower 5015 is widely utilized across industries that require precision cooling, including:
3D Printers: Effectively cools hot ends, extruders, and printed materials, preventing overheating and enhancing print quality.
Consumer Electronics: Maintains optimal temperatures in compact devices such as projectors, routers, and gaming consoles.
Medical Equipment: Supports air circulation in sterilizers and disinfection devices where controlled airflow is essential.
Industrial Controls: Provides reliable cooling for sensitive electronic components in automation and control systems.
