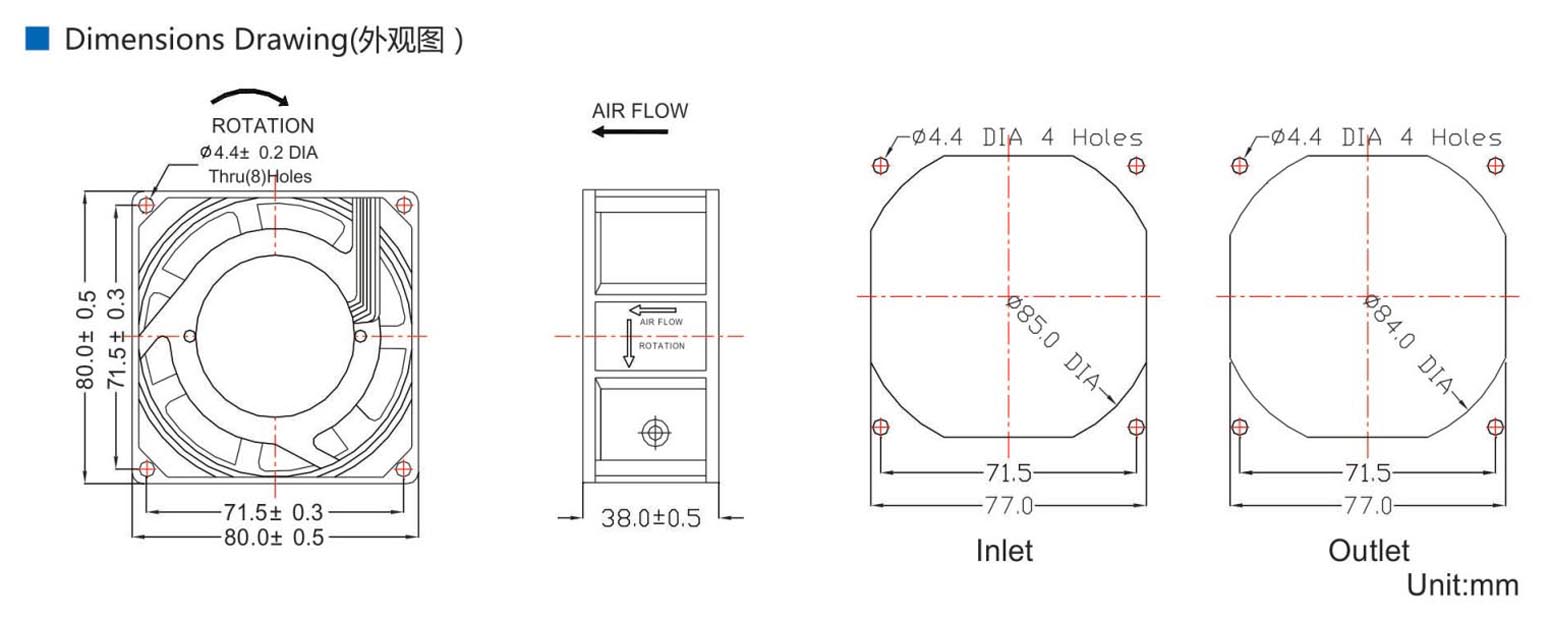

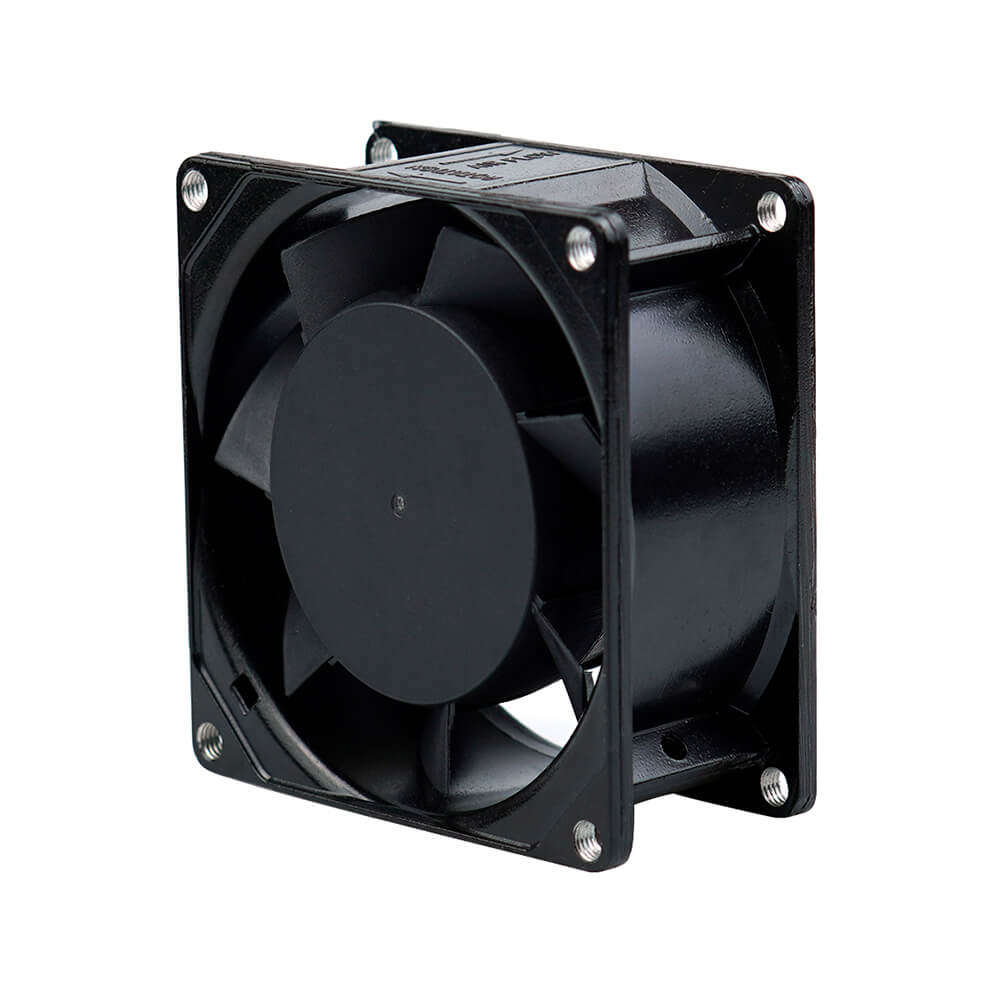

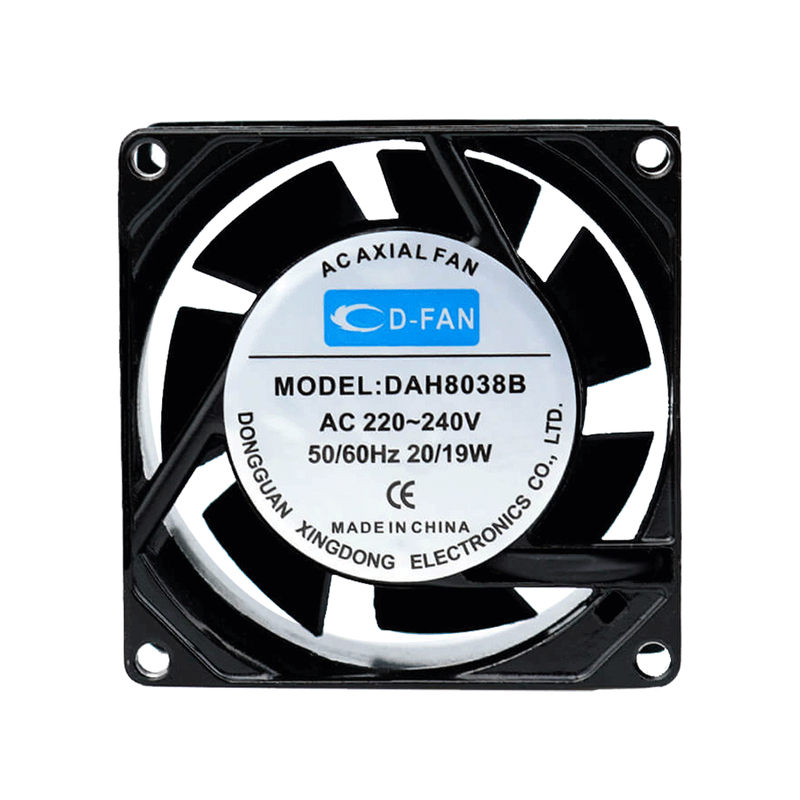

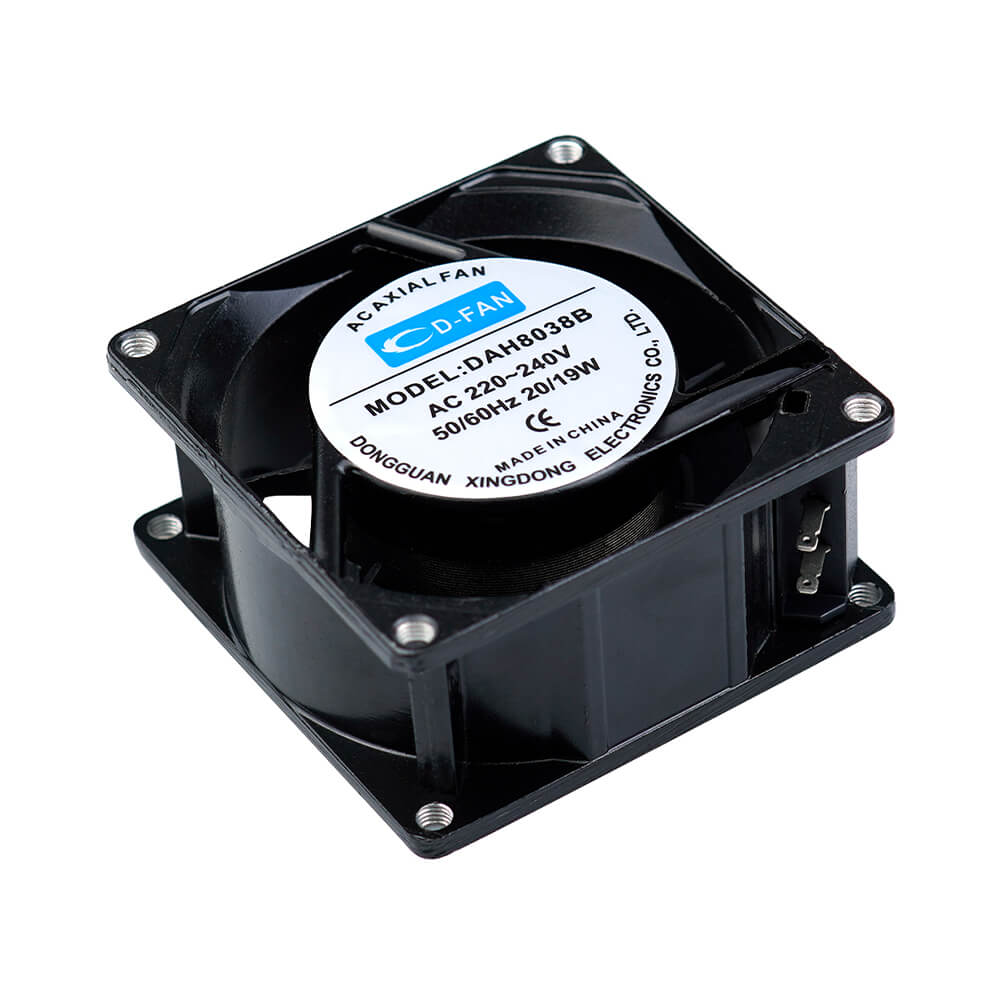

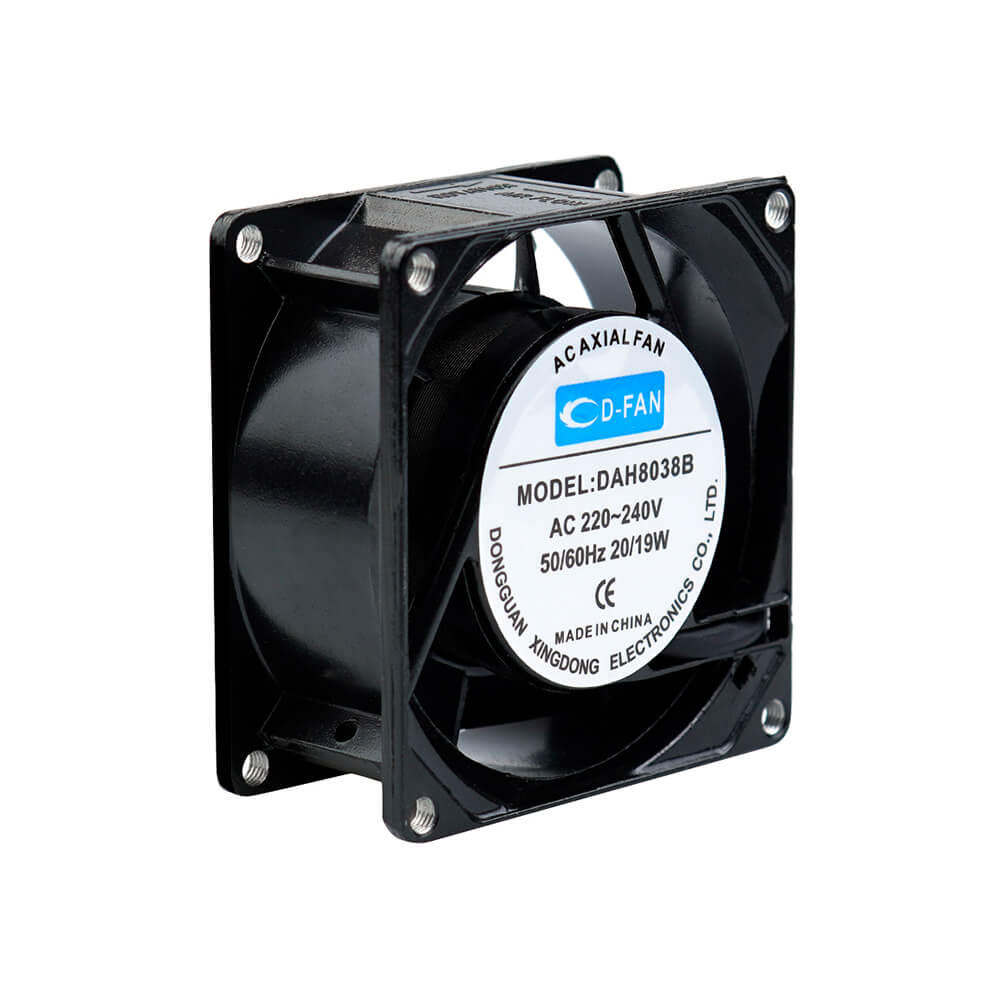

The AC Axial Fan 8038 has dimensions of 80mm x 80mm x 38mm and features a durable shaded pole motor along with a die-cast aluminum frame, ensuring both longevity and effective heat dissipation. The impeller is made from PBT (Polybutylene Terephthalate) reinforced with 30% fiberglass, providing outstanding mechanical strength and flame resistance (rated UL94V-0). This combination of materials allows the fan to endure harsh conditions while maintaining reliable performance.

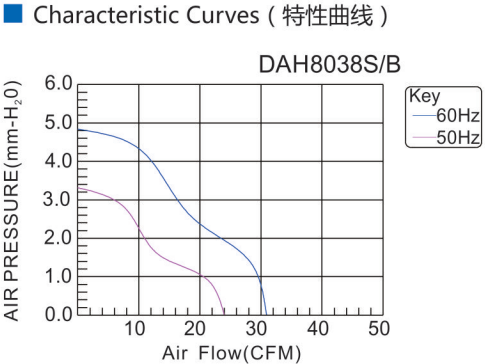

With high-precision ball bearings or oil-retaining sleeve bearings, the AC Axial Fan 8038 boasts an operational lifespan of up to 50,000 hours for ball bearings and 20,000 hours for sleeve bearings, all while keeping noise levels between 28 to 35 dBA, depending on the specific model. It operates on voltages of 100-240V AC and frequencies of 50/60 Hz, delivering airflow rates of approximately 0.49 to 0.62 cubic meters per minute (m³/min) at speeds ranging from 2300 to 2600 RPM. Its IP54 rating provides protection against dust and water splashes, making it suitable for various industrial applications.
Frame: The high-quality die-cast aluminum alloy provides excellent structural integrity, corrosion resistance, and improved thermal conductivity, facilitating efficient heat dissipation.
Impeller: The injection-molded PBT with 30% fiberglass reinforcement ensures strength and dimensional stability, minimizing vibration and noise during operation.
Bearings: Customers can choose between ball bearings for extended lifespan or oil-retaining sleeve bearings for a more cost-effective option, both designed for smooth and quiet operation.
Safety and Compliance: The use of flame-retardant materials and robust insulation ensures compliance with UL, CE, and RoHS2.0 standards, promoting user safety and environmental responsibility.
These material selections and precise manufacturing processes result in a fan that is not only reliable but also energy-efficient and low-maintenance, making it ideal for continuous operation in critical applications.
The manufacturing of the AC Axial Fan 8038 follows a detailed process that emphasizes quality at every step:
Die-Casting and Machining: The aluminum frame is die-cast and precisely machined to exact specifications, ensuring a perfect fit and structural integrity.
Impeller Injection Molding: The fan blades are produced through a single injection molding process using fiberglass-reinforced PBT, ensuring uniform strength and flame resistance.
Motor Assembly: The shaded pole motor is assembled with impedance protection and insulated windings to withstand heat and electrical stress.
Bearing Installation: High-quality bearings are installed under strict cleanliness and lubrication standards to maximize lifespan and minimize noise.
Final Assembly and Testing: Each fan undergoes thorough testing for electrical performance, airflow, noise levels, and durability to ensure compliance with ISO-9001 quality management and international safety standards.
Packaging: Fans are carefully packaged with protective guards and mounting hardware, ready for wholesale distribution.
The AC Axial Fan 8038 is widely used in specialized equipment such as exposure units and beauty devices, where reliable and precise cooling is crucial.
Exposure Units: These machines require stable temperature control to ensure accurate photoresist exposure during PCB manufacturing or printing plate preparation. The 8038 fan provides consistent airflow to dissipate heat generated by UV lamps and electronic components, enhancing process stability and extending equipment lifespan.
Beauty Devices: Equipment such as facial steamers, laser therapy machines, and other skincare tools generate heat during operation. The AC Axial Fan 8038 effectively cools internal electronics and mechanical components, ensuring safe operation and maintaining device performance without introducing excessive noise that could disrupt the user experience.
The fan’s compact design, durable materials, and long service life make it an ideal cooling solution in these precision-focused industries.
