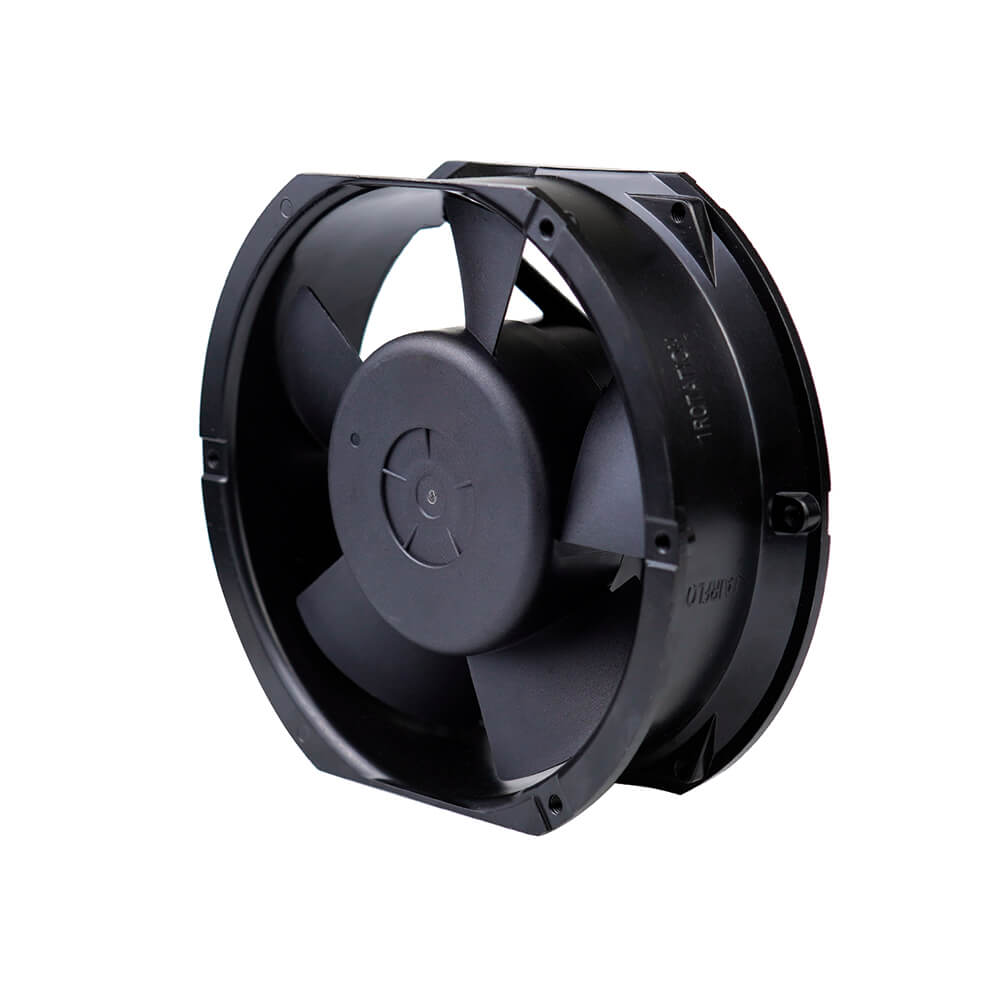

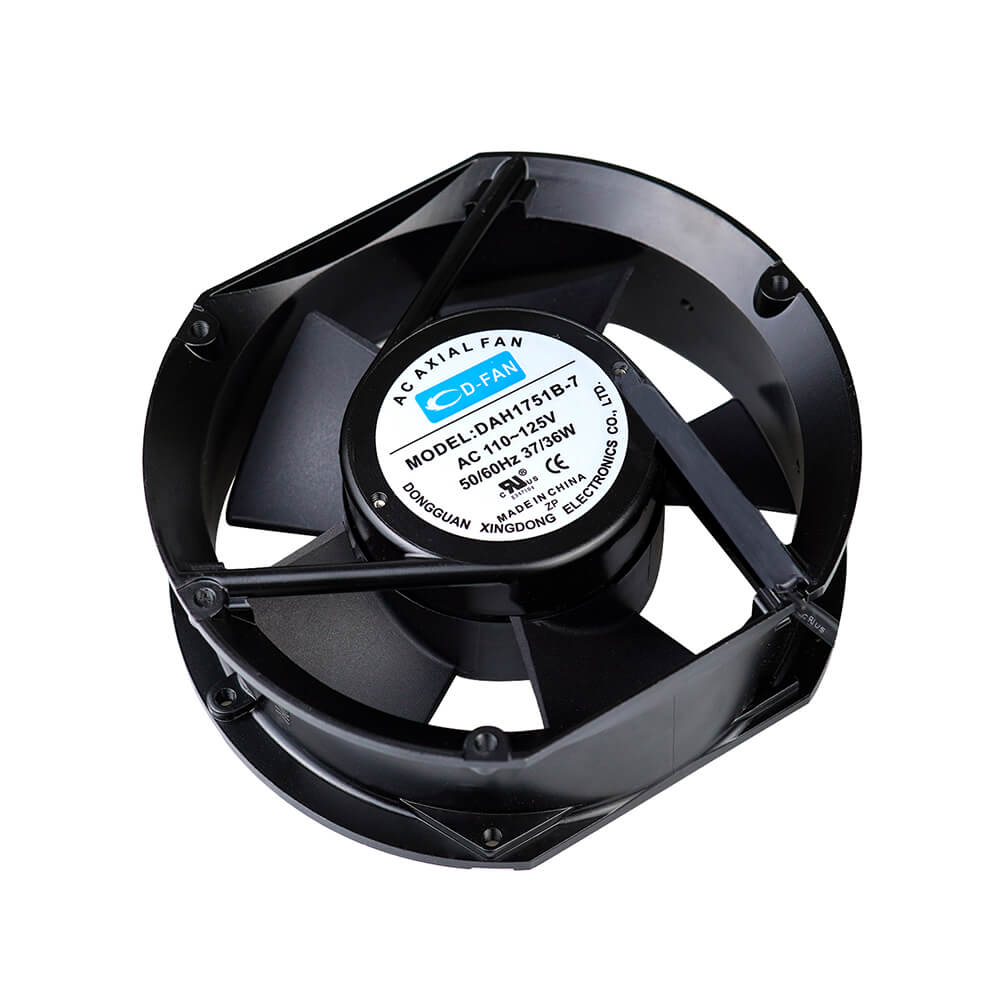

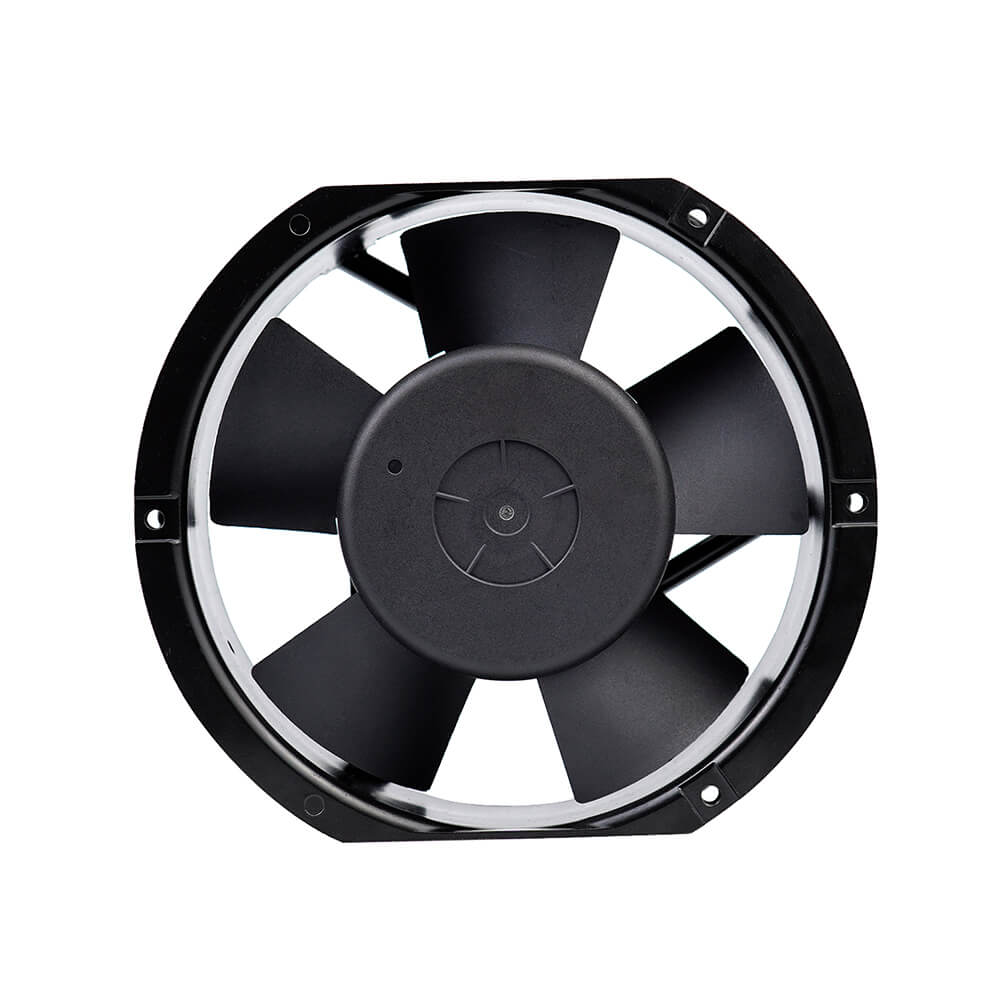

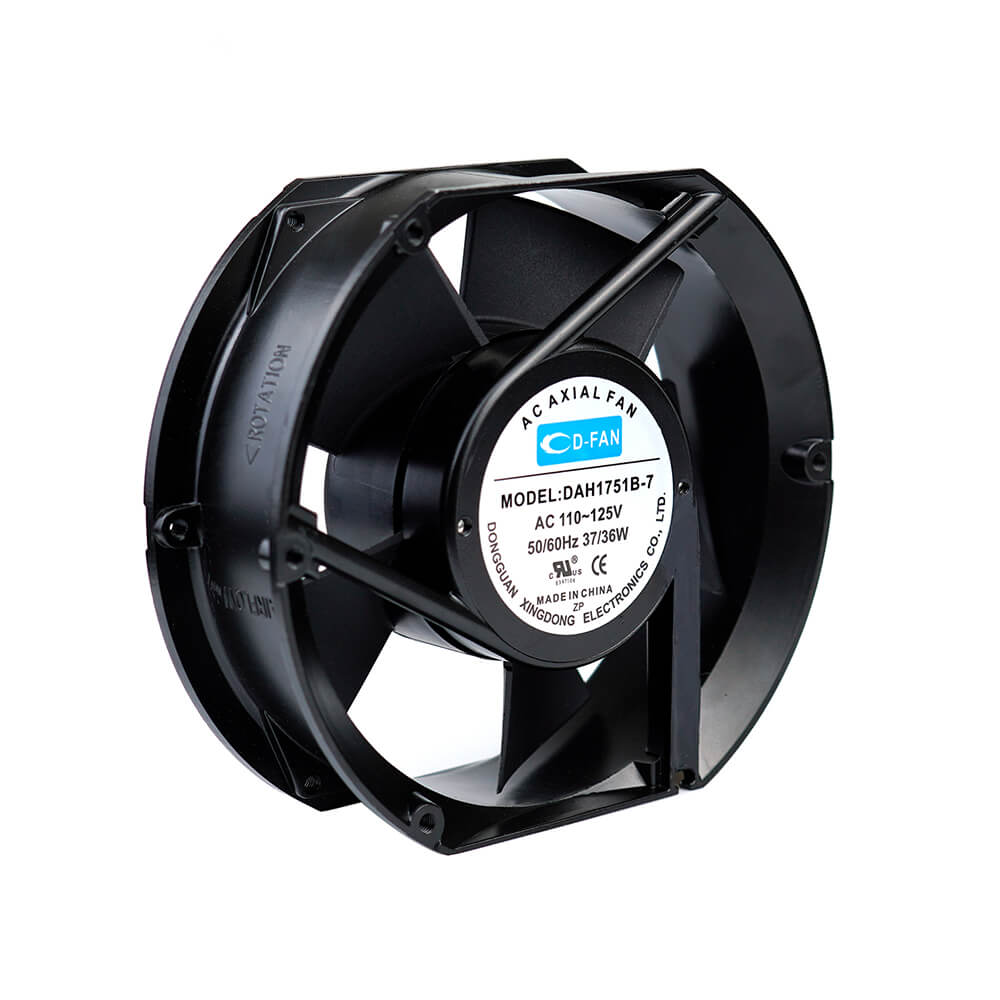

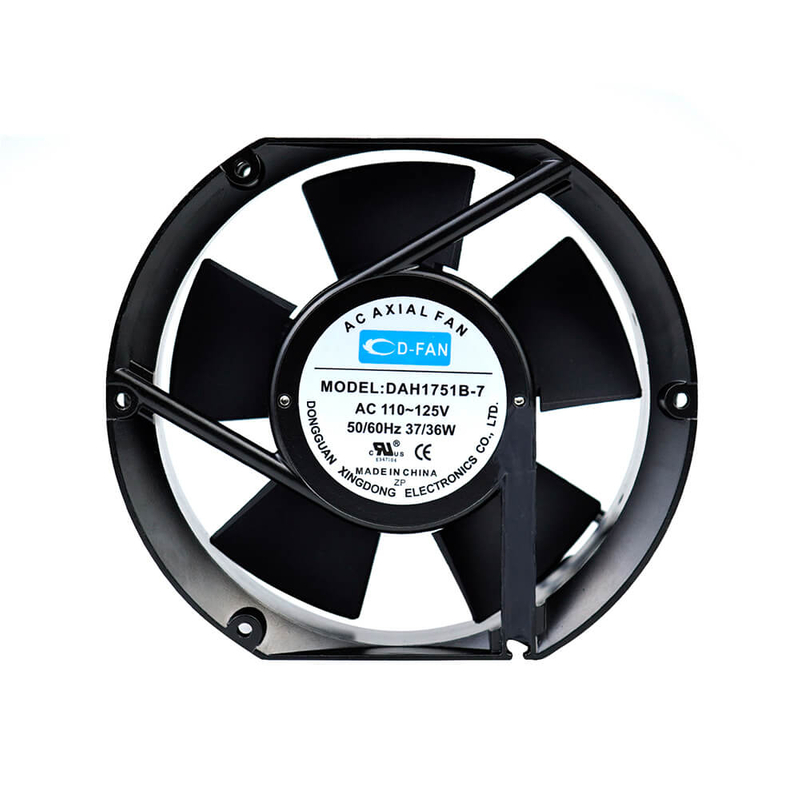

AC Axial Fan 1751: Overview and Key Features

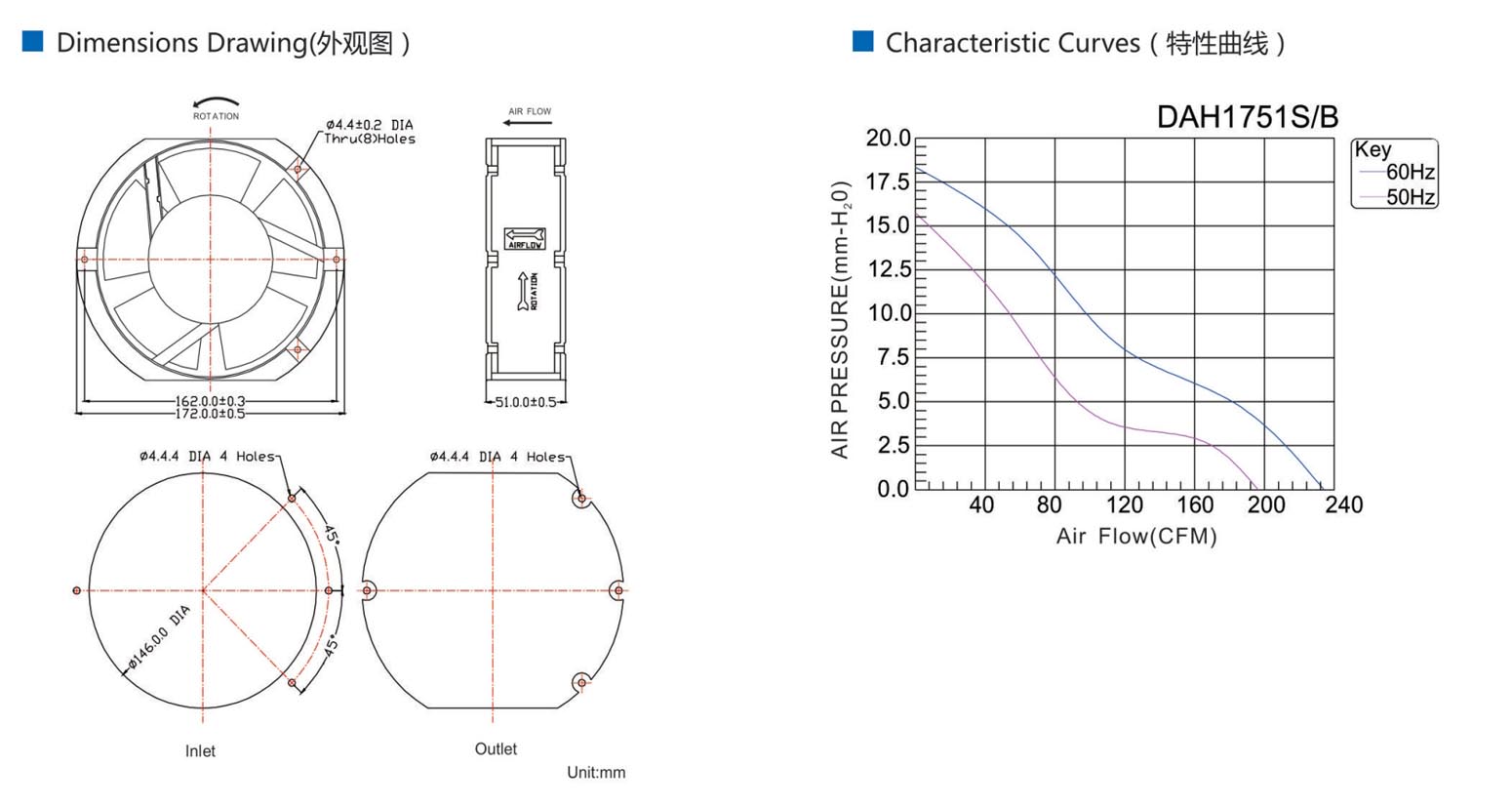

The AC Axial Fan 1751 is designed to provide strong airflow and dependable operation across various environments. With dimensions of 172mm x 150mm x 51mm, this fan is perfect for applications that require efficient cooling or ventilation, making it an excellent replacement for many industrial and electronic equipment fans.
The fan housing is made from die-cast aluminum, offering exceptional durability and resistance to harsh conditions and mechanical impacts. The impeller and blades are molded from thermoplastic materials that meet high flammability resistance standards (UL 94V-0), ensuring both safety and longevity.
Operating on 100 to 120V AC, the fan reaches a high speed of 2800 RPM, generating an airflow of 211 CFM (cubic feet per minute) with a static pressure of 13.7 mm-H2O. This powerful airflow makes it suitable for cooling server racks, industrial machinery, LED signs, tanning beds, and arcade systems.
Featuring dual ball bearings, the fan has a lifespan of up to 67,000 hours and can be mounted in any orientation, providing flexibility during installation.
The AC Axial Fan 1751 is UL certified (certificate E503903), as well as compliant with CE and RoHS standards, reflecting our dedication to quality and environmental responsibility.
The fan kit includes a 4-foot power cord, two metal fan guards with a black powder-coated finish for safety, and a set of mounting screws, making installation and maintenance straightforward.
The AC Axial Fan 1751 operates based on the principle of axial airflow generation. The motor drives a rotating shaft connected to skewed blades (impeller), which draw air parallel to the shaft axis and push it through the fan housing. This axial airflow effectively cools electronic components or ventilates enclosed spaces by moving large volumes of air at relatively low pressure.
The fan utilizes an impedance-protected capacitor motor designed to endure heat during rotor lock conditions. Dual ball bearings minimize friction and wear, ensuring smooth rotation and a prolonged operational lifespan.
The thermoplastic blades are aerodynamically shaped to optimize airflow while maintaining structural integrity during high-speed rotation.
While the fan is optimized for high airflow (211 CFM), it operates at noise levels around 52 dBA, which is acceptable in industrial environments where cooling efficiency is prioritized over quiet operation.
Our commitment to innovation is reflected in the AC Axial Fan 1751 through:
Material Advancements: The use of die-cast aluminum for the housing and UL 94V-0 rated thermoplastic for the blades ensures safe operation in demanding environments with enhanced fire resistance.
Motor Protection Technology: The impedance-protected motor winding design improves heat resistance, reducing failure rates and enhancing reliability during continuous operation.
Bearing Technology: The incorporation of long-life dual ball bearings allows for multi-directional mounting and significantly extends the fan’s operational lifespan to over 67,000 hours, lowering maintenance costs.
Comprehensive Certifications: Achieving ISO-9001, ISO-14001, UL, CE, TUV, and RoHS2.0 certifications highlights our rigorous quality control and environmental responsibility in manufacturing.
Customizable Solutions: We provide options to customize the fan’s specifications to meet specific client requirements, including voltage ranges, bearing types, and mounting configurations, supported by our expert technical team.
The AC Axial Fan 1751 is widely utilized in scenarios where high airflow is essential, including:
Cooling: Used in server racks, UPS systems, and network equipment to prevent overheating and ensure operational stability.
Ventilation: Effective in industrial machinery and electronic cabinets.
Air Circulation: Ideal for LED signage, tanning beds, and arcade gaming systems.
Replacement Fan: Serves as a cost-effective upgrade for various Samsung and Eaton server models.
By maximizing airflow and ensuring reliable, long-lasting performance, the AC Axial Fan 1751 helps protect sensitive equipment, reduce downtime, and enhance overall system efficiency.
