9238
Availability: | |
---|---|
Quantity: | |

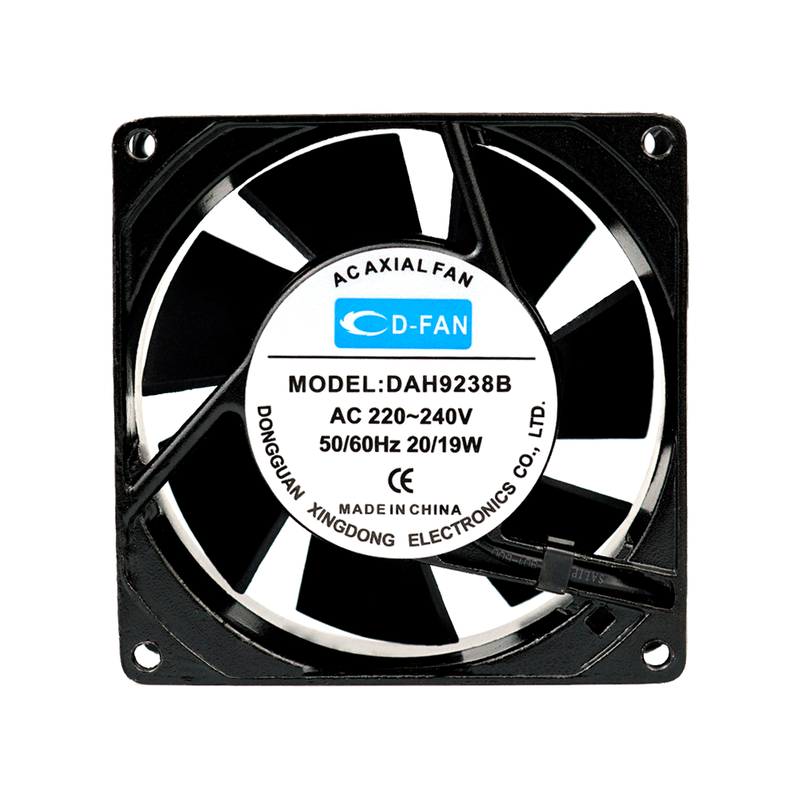

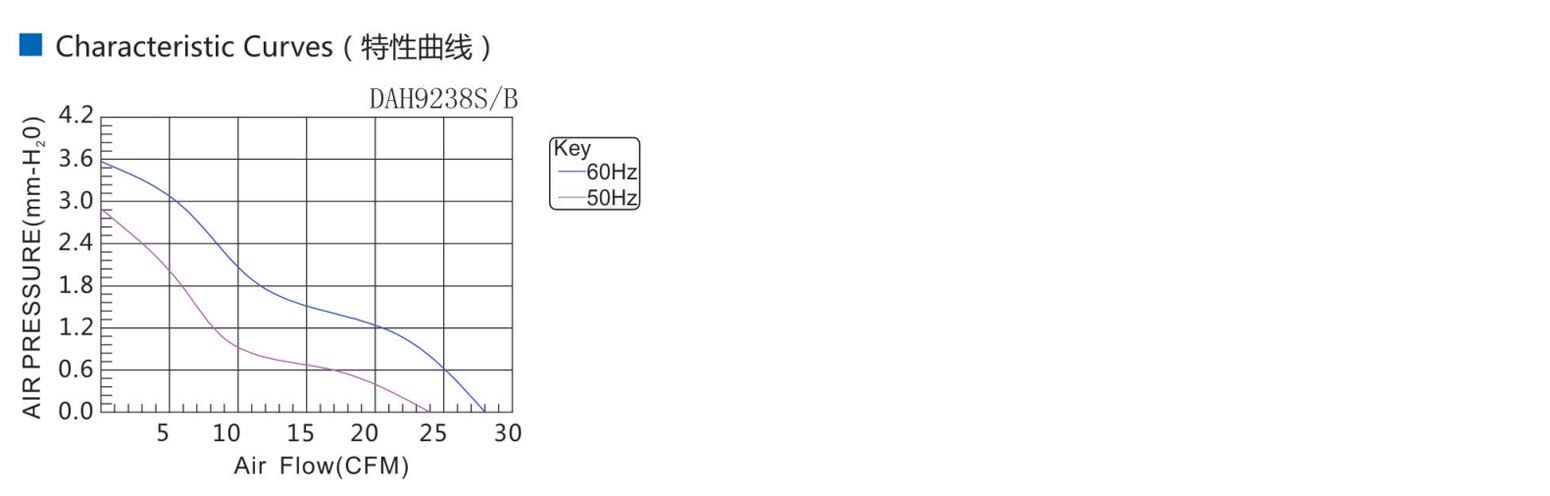

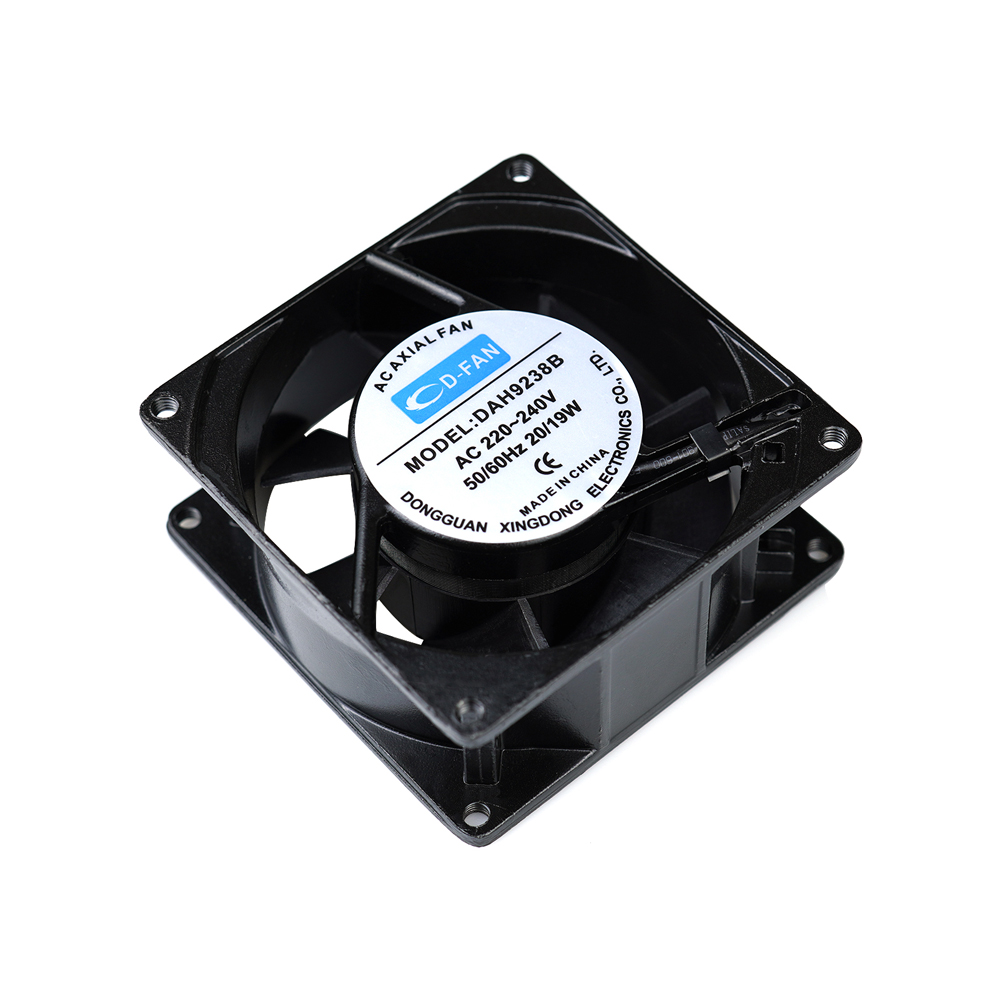

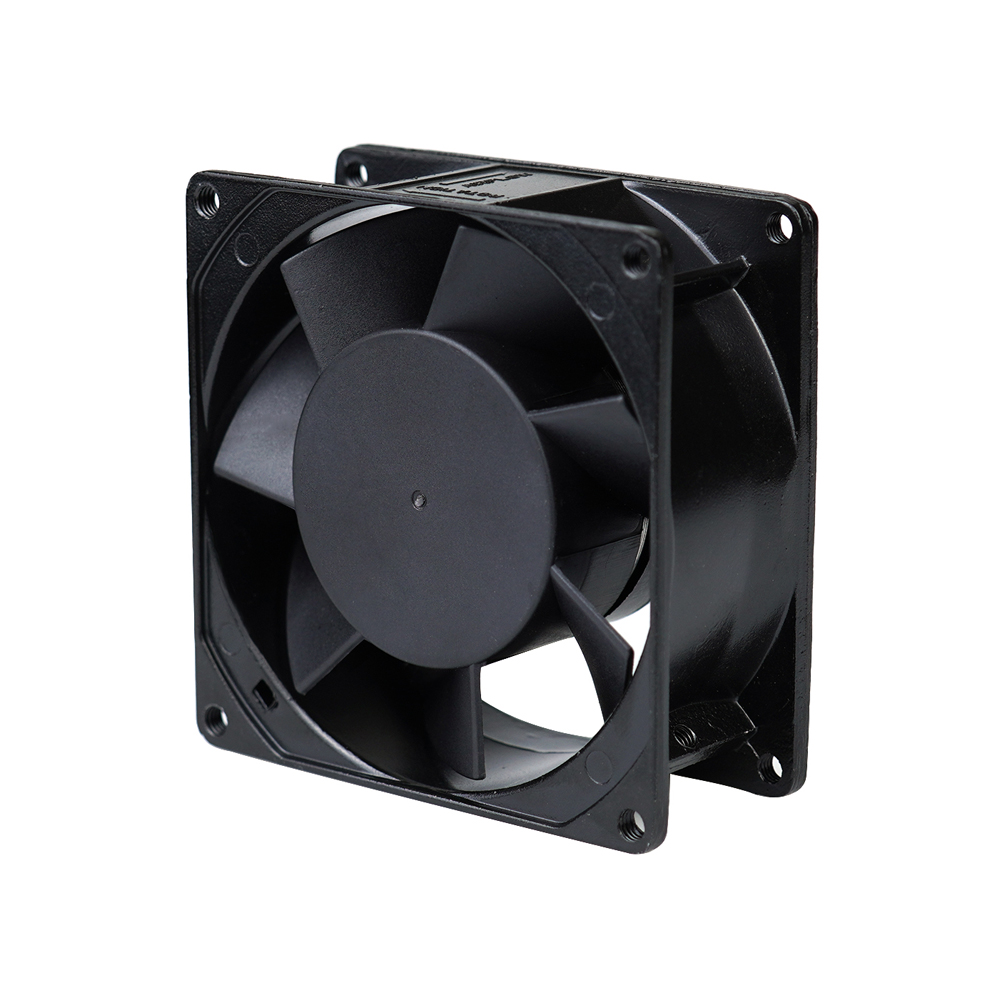

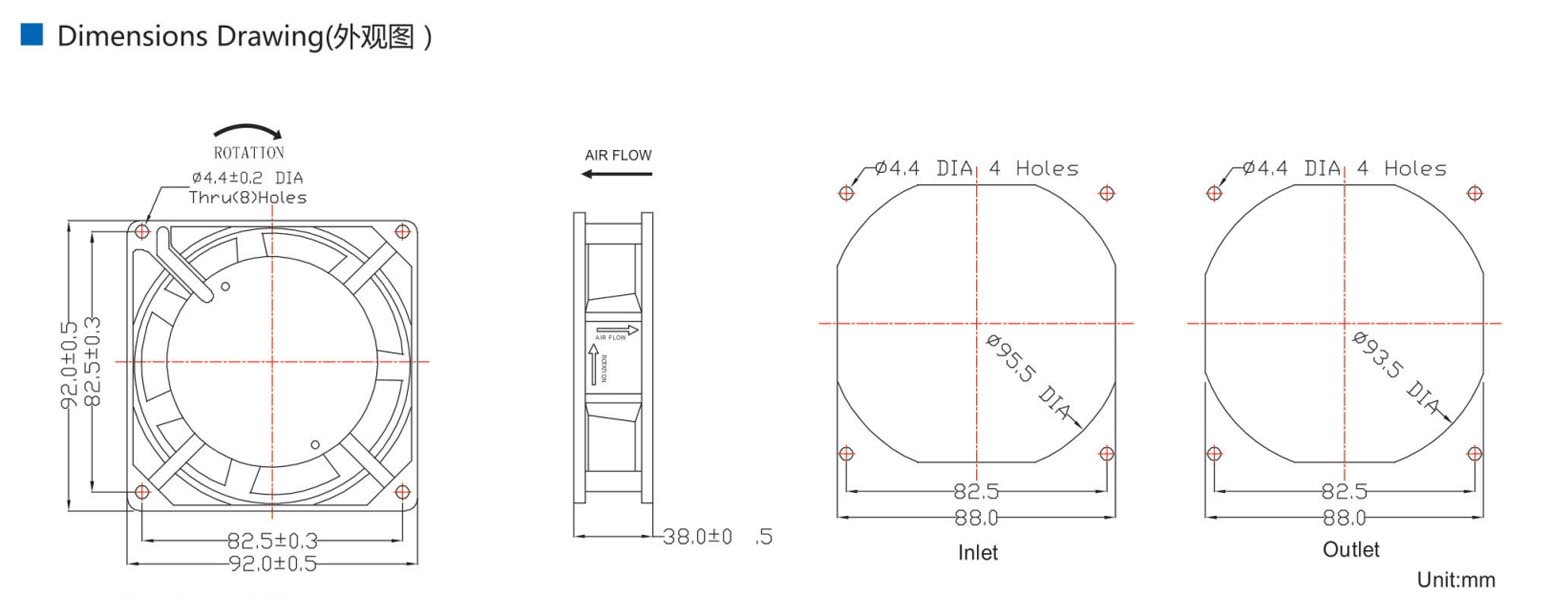

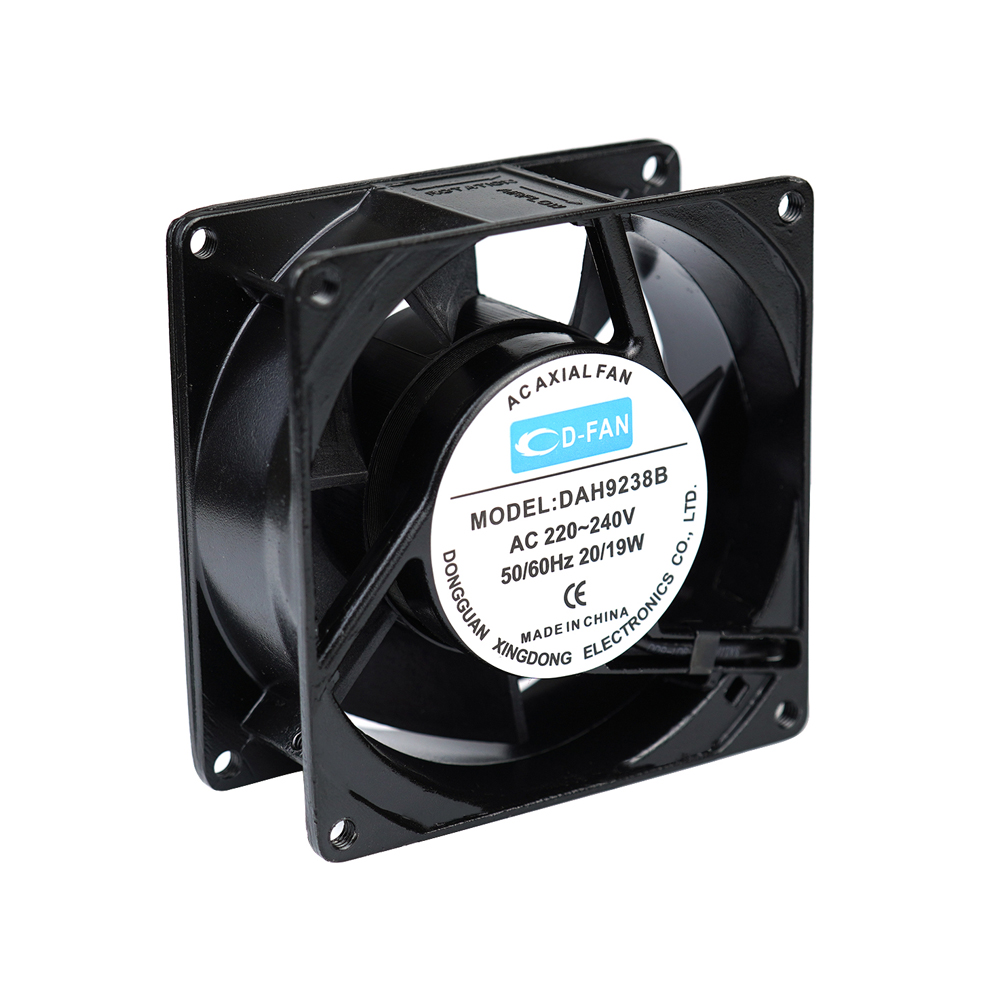

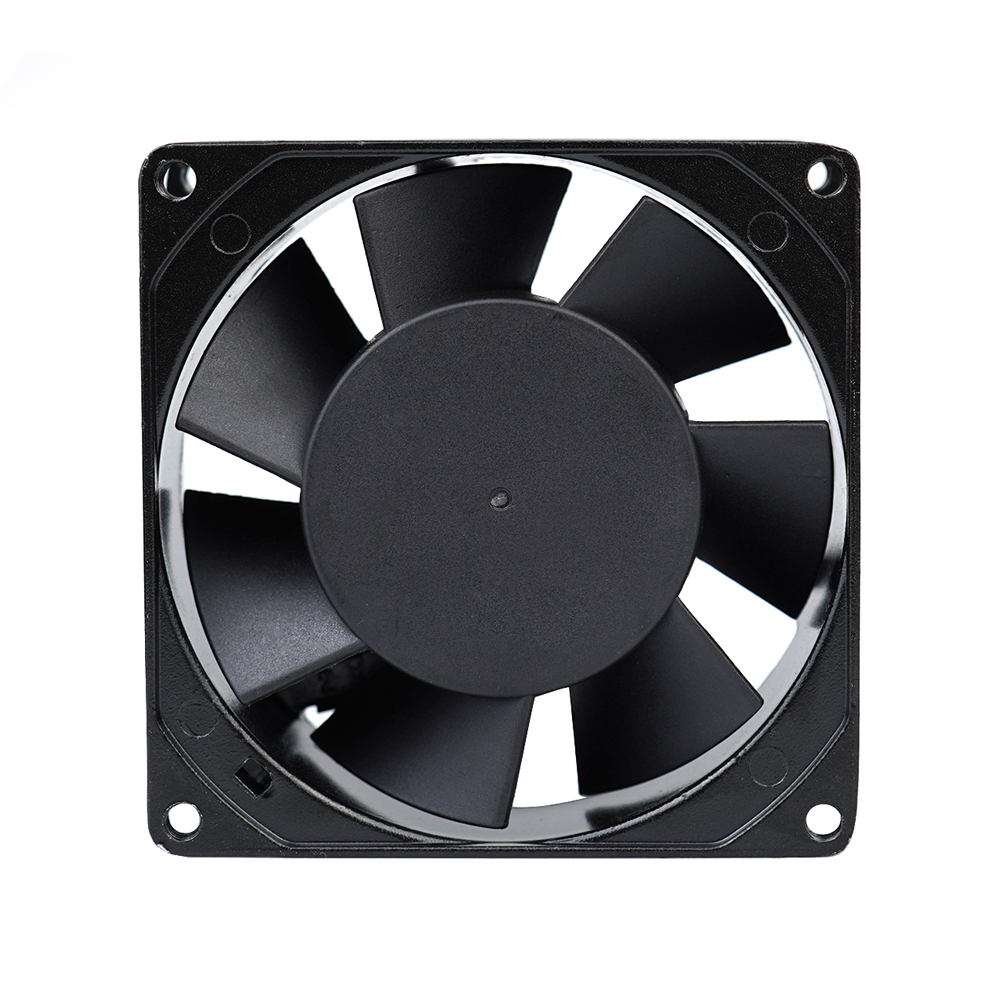

The AC Axial Fan 9238 is a durable and adaptable cooling solution with dimensions of 92mm x 92mm x 38mm, engineered for high airflow and dependable performance across various industrial and commercial applications. This fan typically operates at either 110V or 220V AC with frequencies of 50/60Hz. It provides airflow between approximately 63 to 85 cubic meters per hour (37 to 50 CFM) at speeds ranging from 2200 to 3000 RPM, depending on the specific model variant.
Constructed from flame-retardant PBT thermoplastic (rated UL94-V0), both the frame and impeller ensure safety and durability in challenging environments. The frame is often reinforced with aluminum alloy to enhance structural strength and facilitate heat dissipation. Customers can choose between ball bearing and sleeve bearing options, with ball bearings providing longer lifespans and superior performance in continuous operation scenarios.
The fan operates at impressively low noise levels, ranging from 25 to 35 dBA, making it suitable for environments where noise is a concern. It features impedance-protected motors with reverse polarity protection, which enhances safety and extends motor life. The operating temperature range is from -10°C to +70°C, allowing the fan to function reliably in a variety of environmental conditions.
As a premier manufacturer of AC Axial Fans, our production of the AC Axial Fan 9238 adheres to strict quality and environmental standards:
Material Selection: The use of UL94-V0 rated PBT thermoplastic for the impellers and frames, along with aluminum alloy components, ensures flame resistance, mechanical strength, and effective heat dissipation.
Precision Molding and Assembly: Our injection molding technology guarantees accurate dimensions and balance of the impellers, while motor components are assembled under stringent cleanliness and quality control measures.
Bearing Installation: We offer a choice of high-quality ball or sleeve bearings, installed with precise lubrication to maximize lifespan and minimize noise.
Comprehensive Testing: Each fan undergoes 100% inspection, including airflow measurement in calibrated wind tunnels, noise level testing in semi-anechoic chambers, electrical safety verification, and endurance testing to simulate long-term operation.
Certification Compliance: Our production processes comply with ISO-9001 and ISO-14001 management systems, and our products meet UL, CE, TUV, and RoHS2.0 standards for safety and environmental responsibility.
Customization Options: We provide features such as Frequency Generator (FG), Pulse Width Modulation (PWM), Rotation Detector (RD), and temperature control functions tailored to meet customer specifications.
The AC Axial Fan 9238 has been successfully integrated into numerous projects across various industries, showcasing its versatility and reliability:
Industrial Equipment Cooling: A prominent packaging machinery manufacturer utilized the 9238 fan to improve heat dissipation in control cabinets, resulting in a 20% decrease in equipment downtime due to overheating.
Medical Device Ventilation: A global supplier of medical equipment selected the 9238 model with ball bearings and PWM control for air purification units, achieving quieter operation and longer maintenance intervals.
Telecommunications: The fan is commonly used in telecom enclosures and server racks, where its stable airflow and low noise enhance system reliability and user comfort.
Consumer Electronics: Cooling solutions for high-performance gaming consoles and compact desktop PCs benefit from the fan’s compact design and efficient airflow.
HVAC Systems: Integrated into ventilation units for commercial buildings, the 9238 fan helps maintain air quality and temperature control while operating efficiently.
These case studies illustrate the fan’s adaptability and the value our company provides as a trusted partner in customized cooling solutions.
