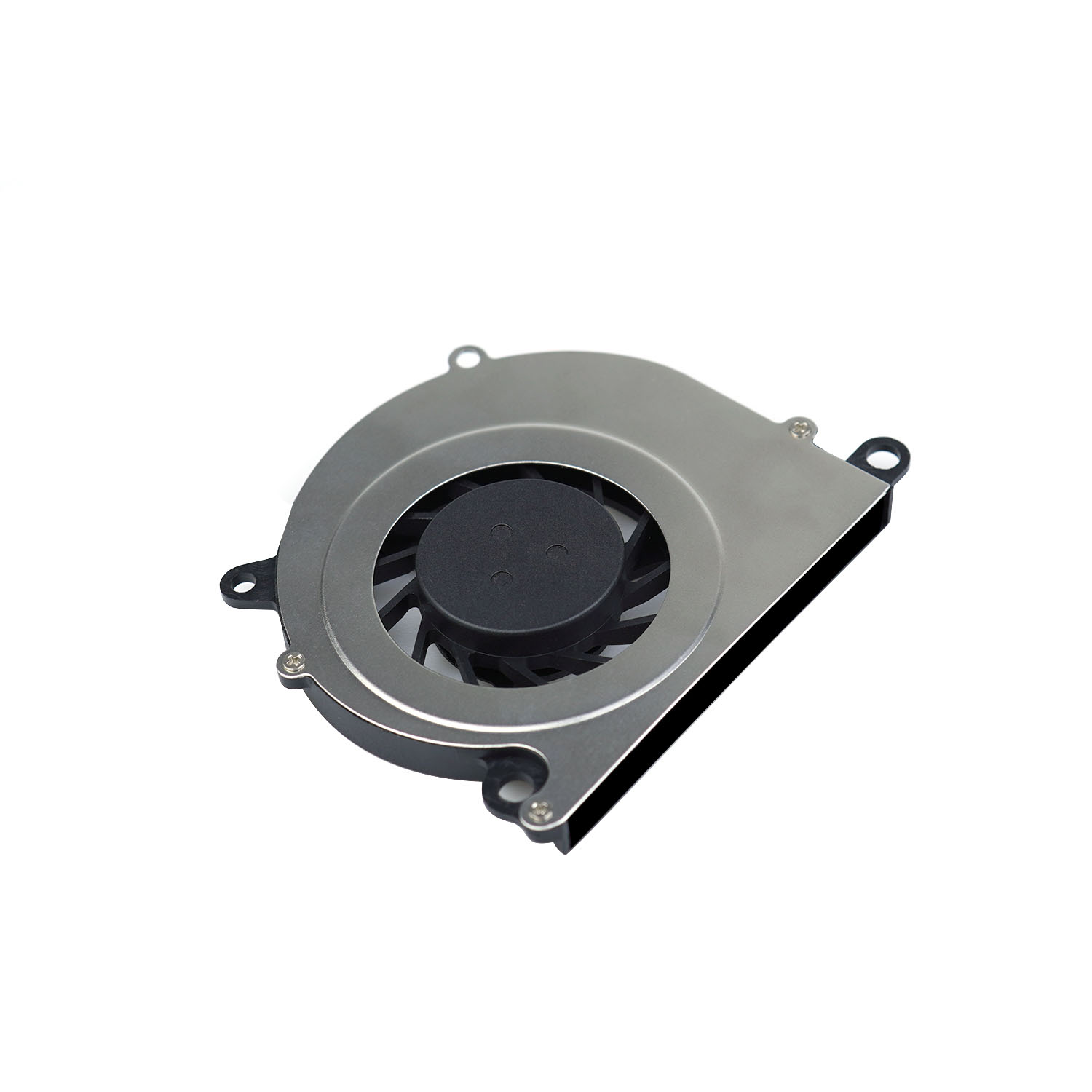

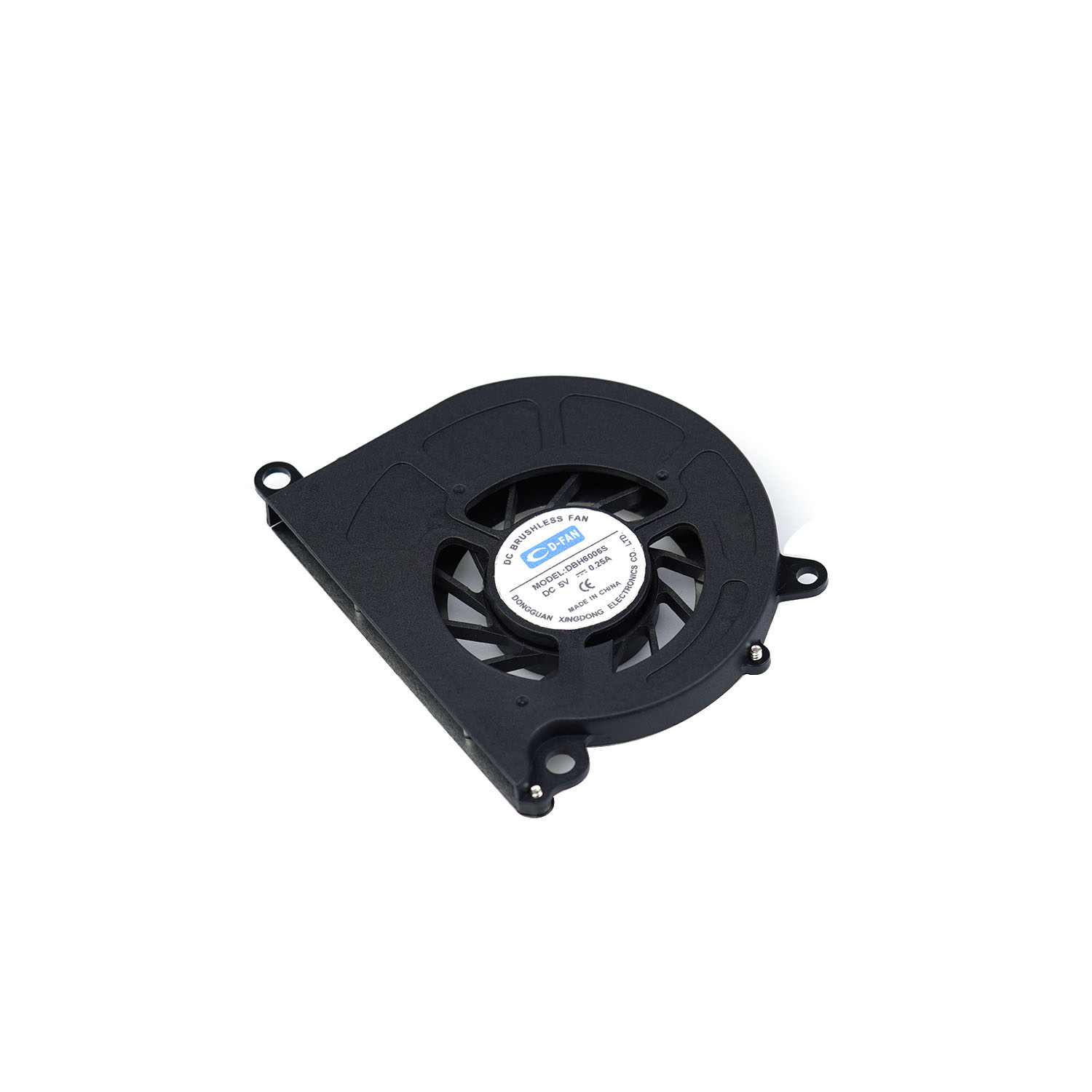

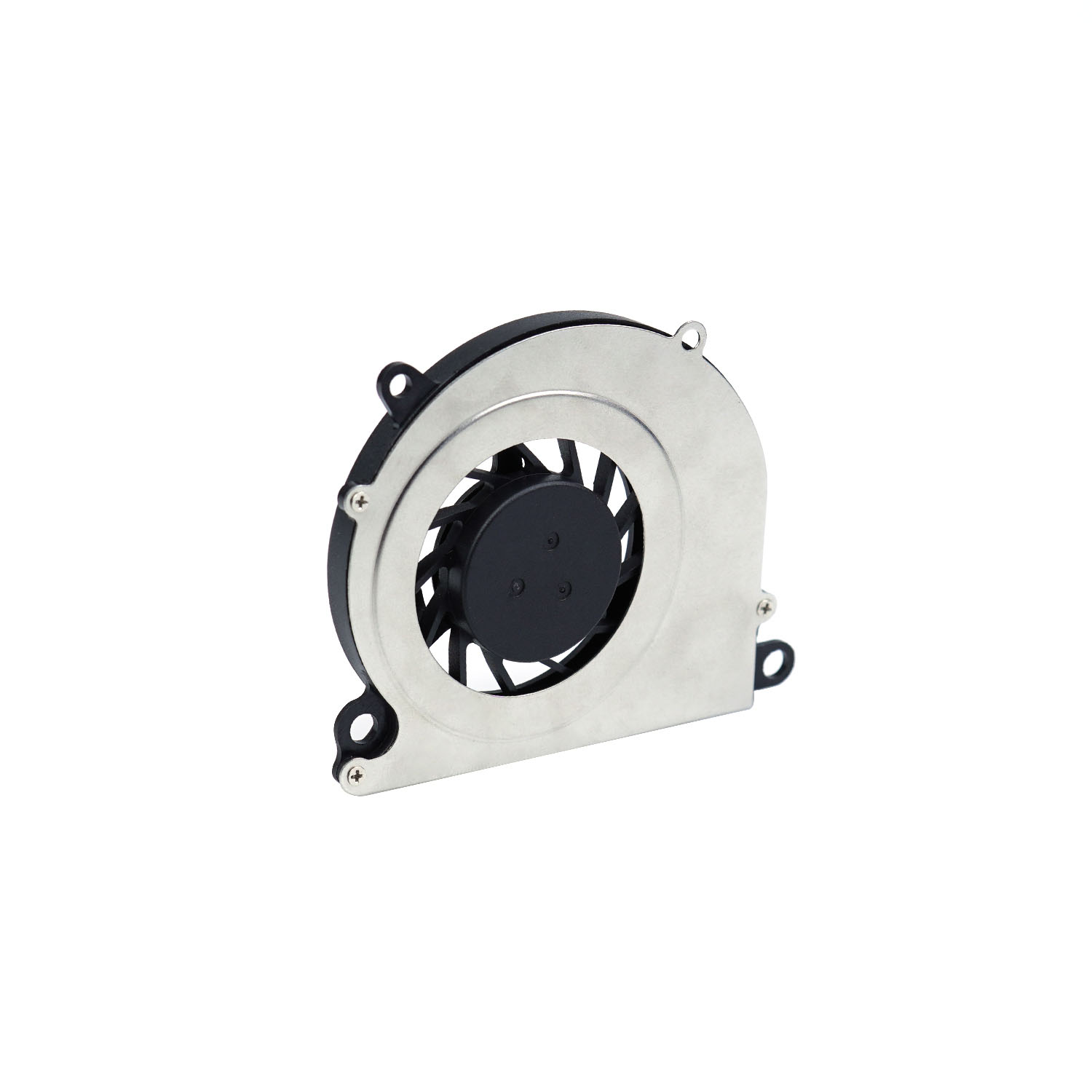

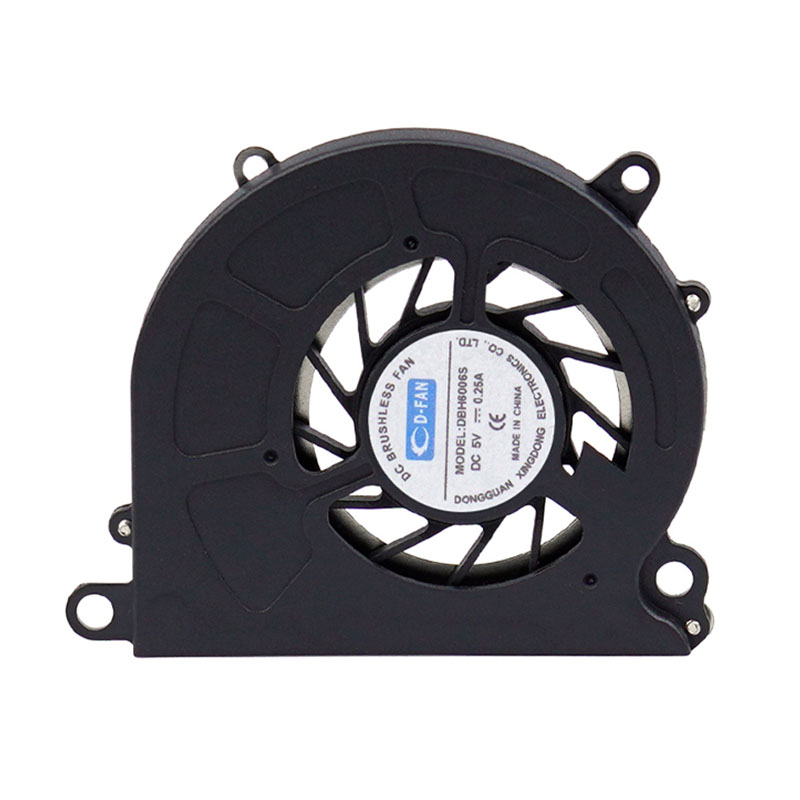

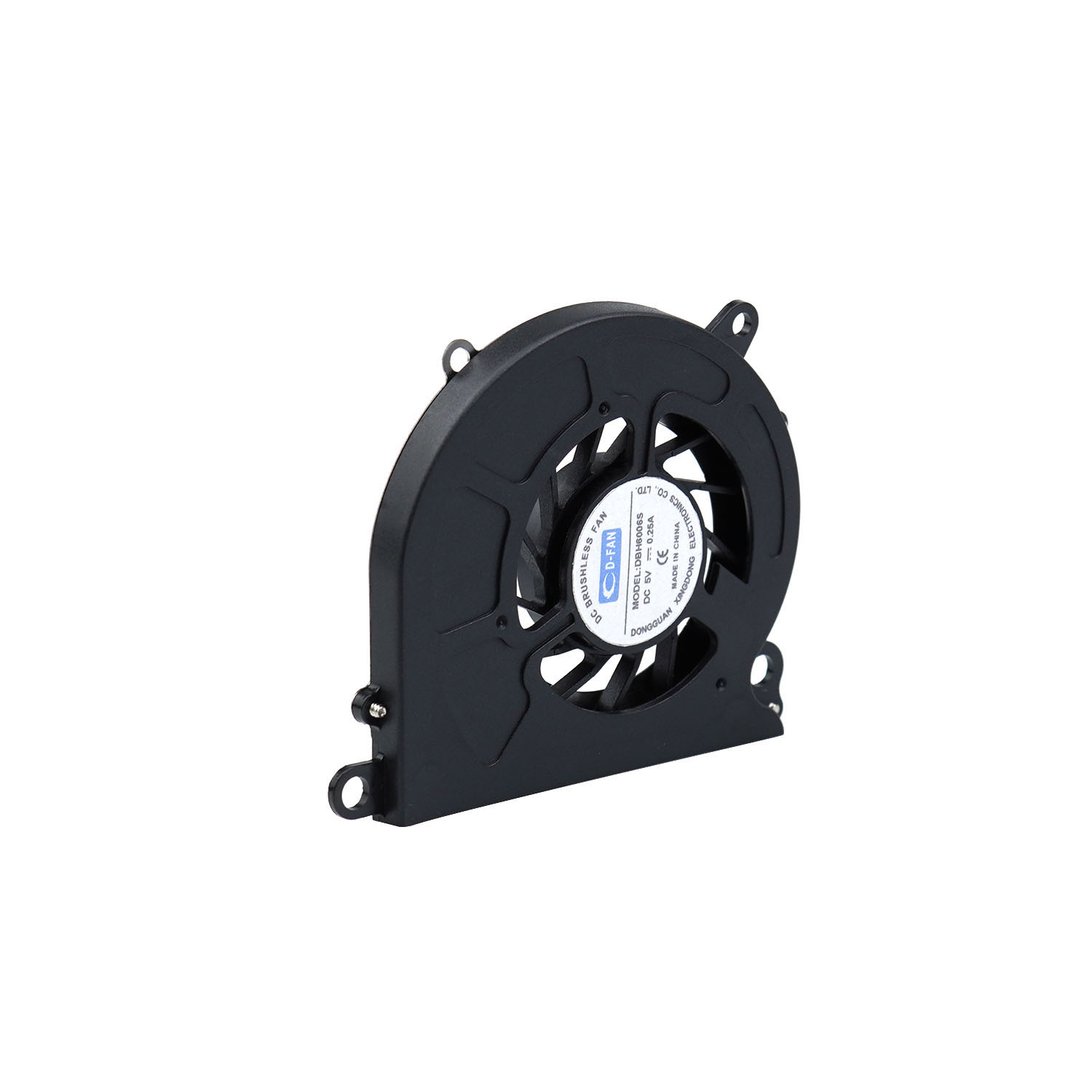

Introducing the Custom DC Blower 6006
The DC Blower 6006 is a compact, high-efficiency centrifugal fan designed to deliver consistent airflow and strong static pressure within a small size of 60mm x 60mm x 25mm. Featuring a brushless DC motor and a dual ball bearing system, this blower ensures a long operational life, low noise levels, and stable performance, making it an excellent cooling solution for a variety of applications.
Material: The frame and impeller are made from UL94V-0 rated PBT plastic, providing outstanding flame resistance, durability, and protection against heat and corrosion.
Voltage Options: Available in 5V, 12V, and 24V DC versions to meet various power needs.
Airflow & Pressure: Airflow capacity ranges from approximately 5.6 CFM to 12.8 CFM, with static pressure reaching up to 1.13 inches of water (InAq), making it suitable for overcoming resistance in compact and enclosed environments.
Noise Level: Operates quietly, with noise levels between 24 dBA and 47 dBA, depending on the speed and model variant.
Speed Range: Speed options range from 2,500 RPM to 5,500 RPM, allowing users to find the ideal balance between airflow and noise.
Weight: The lightweight design, approximately 45 grams, makes integration easy without adding significant weight.
The use of UL94V-0 PBT plastic for both the frame and impeller is essential for the Custom DC Blower 6006. This material not only complies with strict flame retardant standards but also offers excellent mechanical strength and chemical resistance. This ensures that the blower maintains its structural integrity and safety even during continuous operation in demanding environments, such as air conditioning units, humidifiers, and various household or industrial appliances.
To ensure optimal performance and longevity of the DC Blower 6006, users should follow these guidelines:
Proper Installation: Securely mount the blower on a flat surface to minimize vibration and noise. Avoid overtightening mounting screws to prevent deformation.
Voltage Compliance: Operate strictly within the specified voltage range (5V, 12V, or 24V) to prevent motor damage or a shortened lifespan.
Environmental Conditions: Use in clean, dry environments that are free from dust, oil, or corrosive gases that could damage the plastic components or motor.
Maintenance: Regularly clean the air inlets and outlets to prevent dust accumulation, which can hinder airflow and increase noise levels.
Safety: Disconnect power before performing any maintenance. Avoid contact with the impeller during operation to prevent injury.
