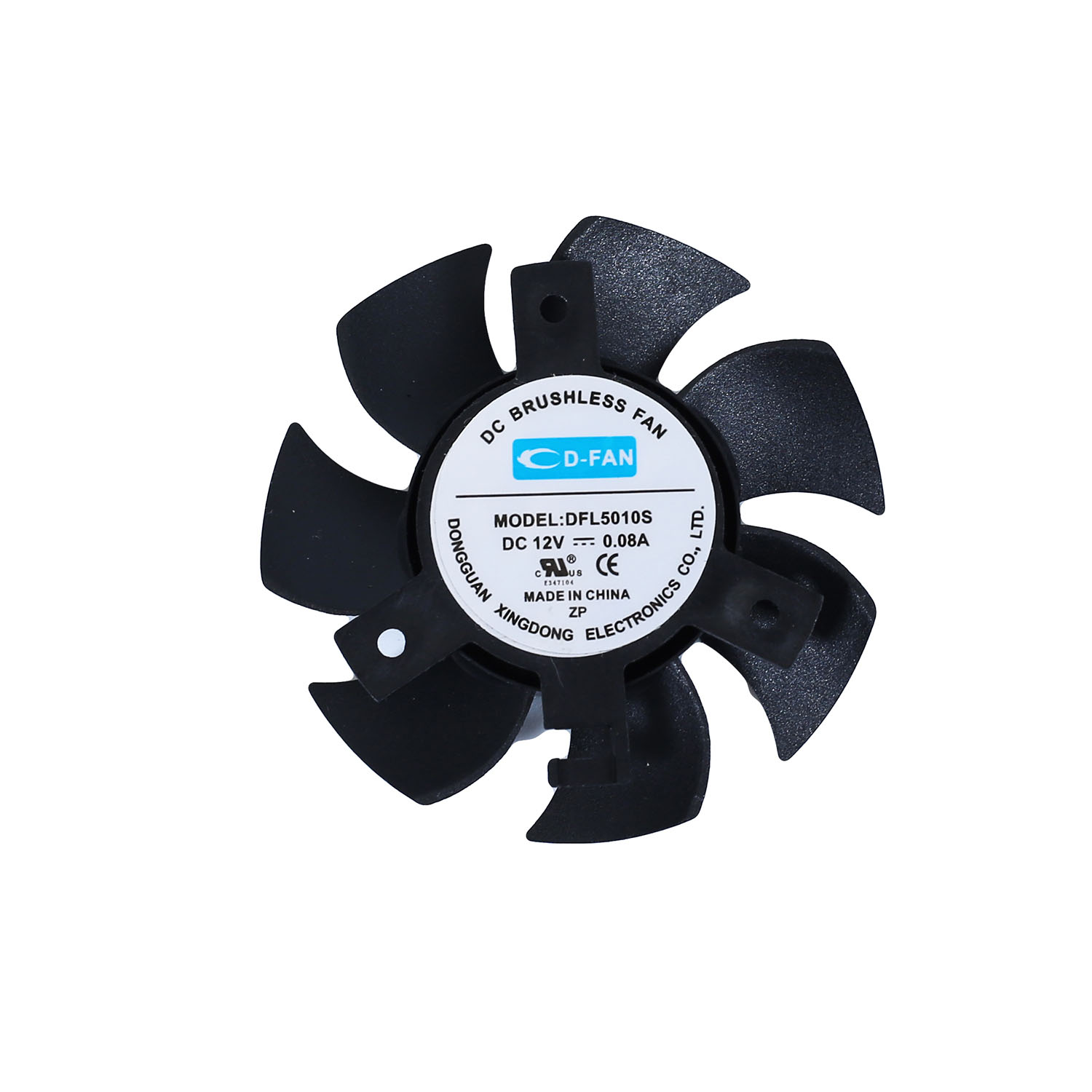

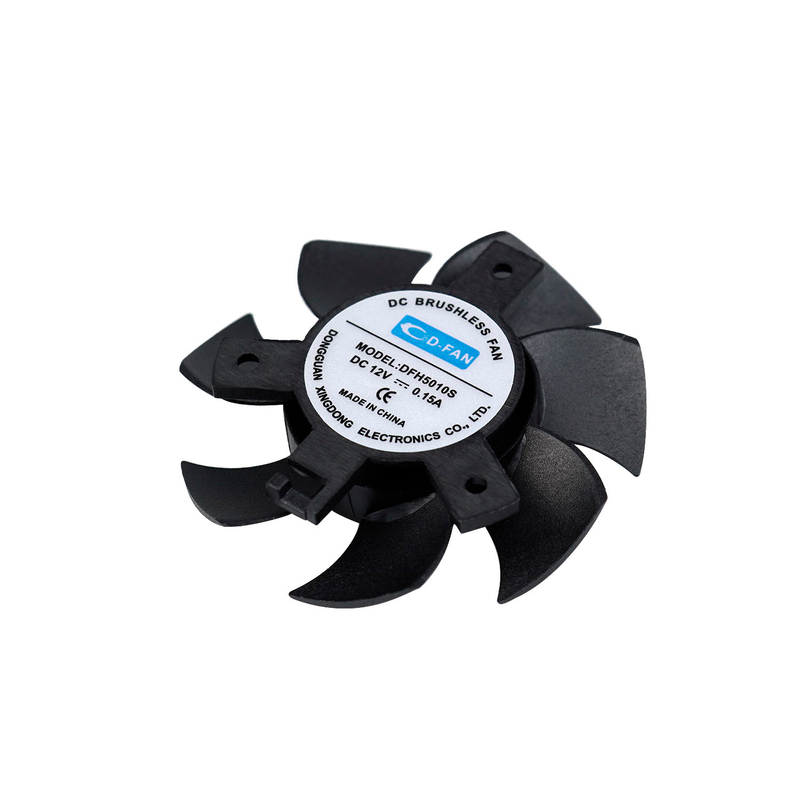

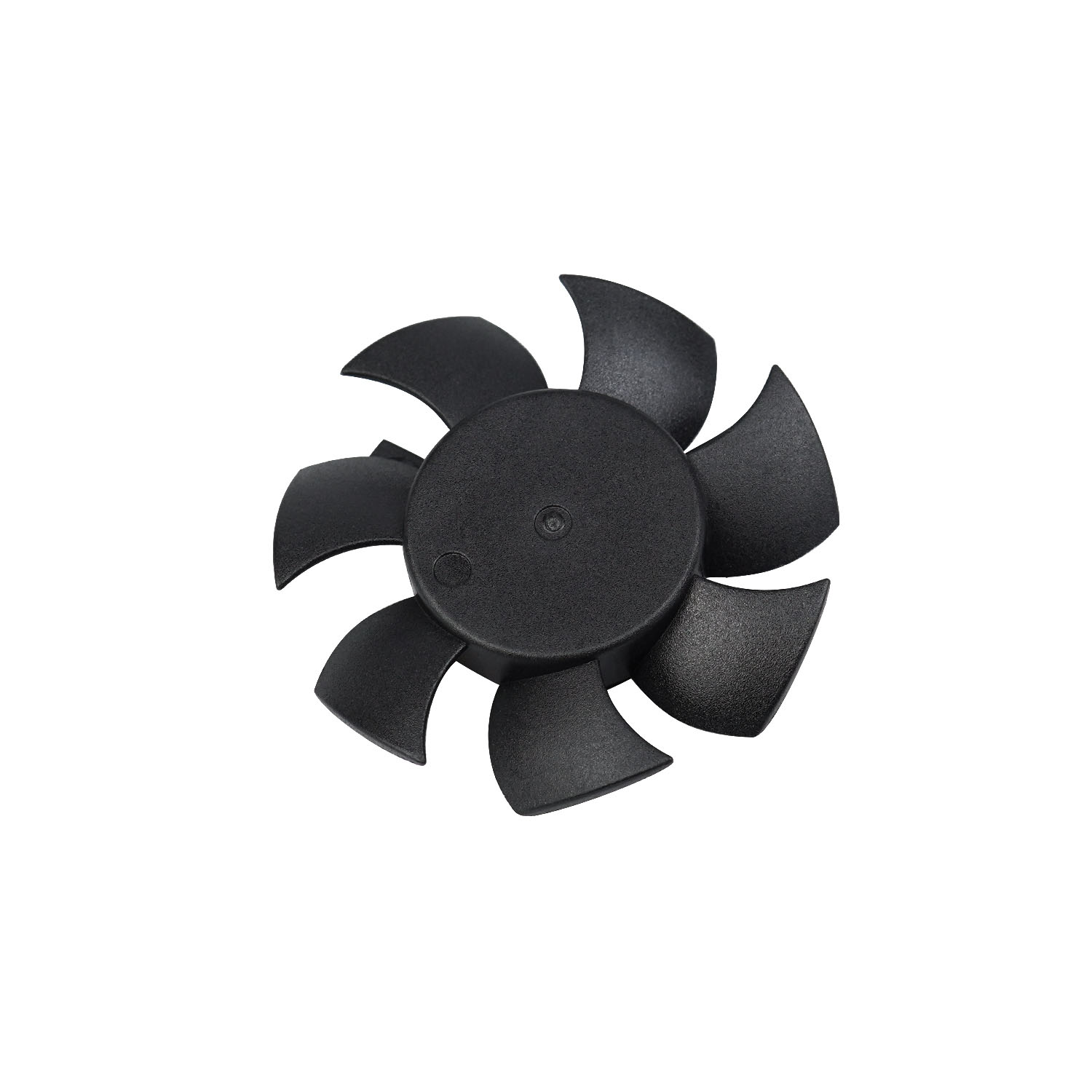

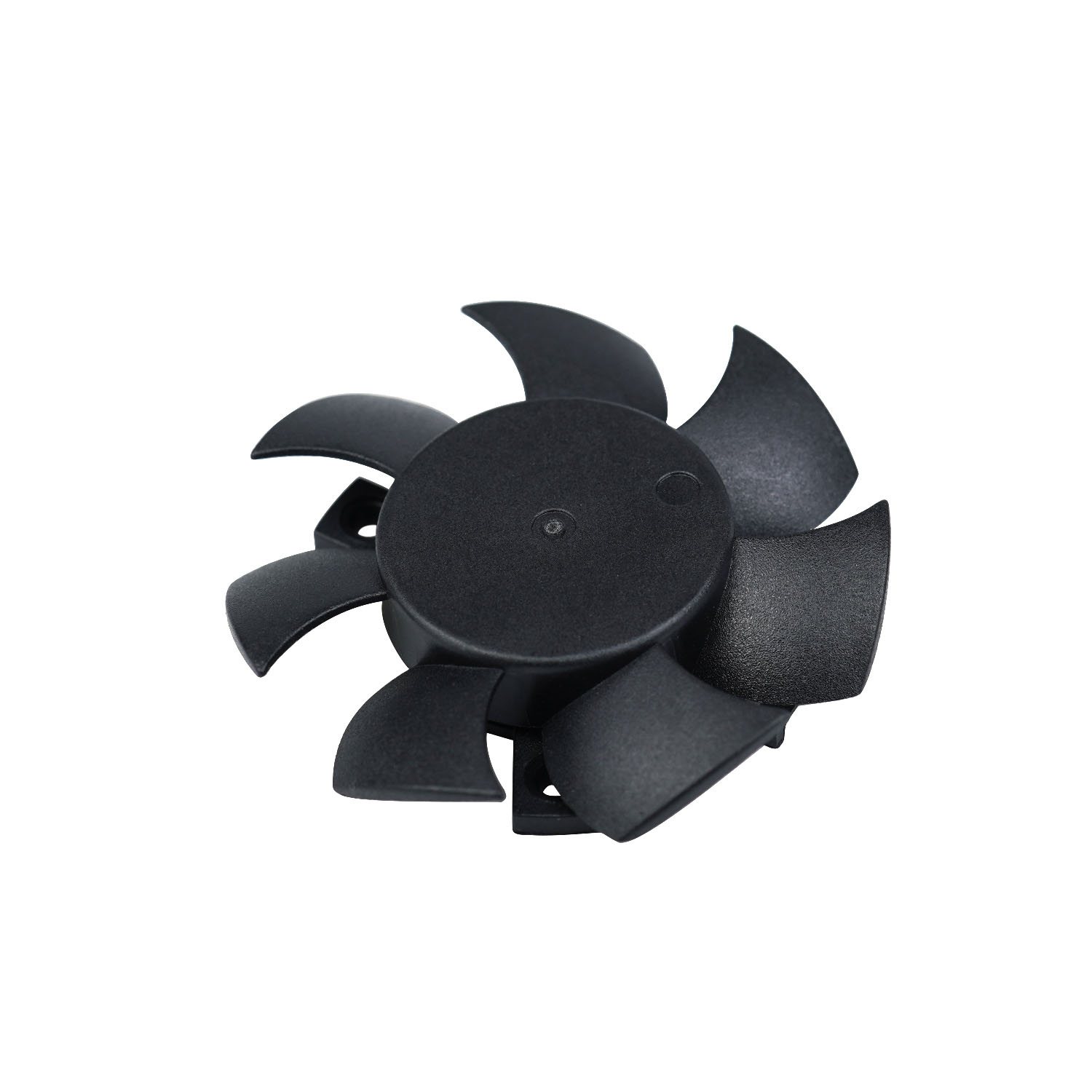

Frameless Fan 5010

The Frameless Fan 5010 is a small and efficient cooling solution, measuring 50mm × 50mm × 10mm, and is designed without the conventional bulky frame. This innovative frameless structure minimizes both size and weight, facilitating better integration into devices with limited space while enhancing airflow and heat dissipation. Made from flame-retardant plastic, the fan is equipped with four angled blades that are optimized for high airflow and quiet performance.

Key Specifications:

• Voltage Options: Available in 5V, 12V, and 24V DC versions to accommodate different power requirements.

• Bearing Types: Offers sleeve bearing and dual ball bearing configurations, with lifespans ranging from 30,000 to 70,000 hours.

• Speed Range: Operates at speeds between approximately 4000 and 6000 RPM, depending on the specific model.

• Airflow: Capable of delivering up to 12.97 CFM (cubic feet per minute) for effective cooling.

• Noise Level: Operates quietly, with sound levels typically ranging from 26.6 dBA to 36.8 dBA.

• Power Consumption: Designed for energy efficiency, consuming between 0.15W and 2.16W based on speed and voltage settings.

• Durability: Built to function reliably within a temperature range of -10°C to +70°C.

• Safety: Includes polarity protection circuits and complies with CE, UL, TUV, and RoHS2.0 standards.

Application in the Security and Surveillance Sector

The Frameless Fan 5010 is extensively utilized in the security and surveillance industry, where dependable and quiet cooling is essential for maintaining the performance and lifespan of sensitive devices like CCTV cameras, DVRs, and network video recorders (NVRs). Its compact and frameless design allows for seamless integration into small enclosures without adding unnecessary bulk or noise.

Key Advantages in This Sector:

• Effective Heat Dissipation: Helps prevent overheating of electronic components, ensuring stable operation in continuous surveillance systems.

• Low Noise: Quiet operation reduces interference with audio recordings and helps maintain a discreet environment.

• Compact Integration: The frameless design enables installation in tight spaces commonly found in security equipment.

• Durability: Long-lasting bearings and flame-retardant materials provide reliable cooling during continuous use.
