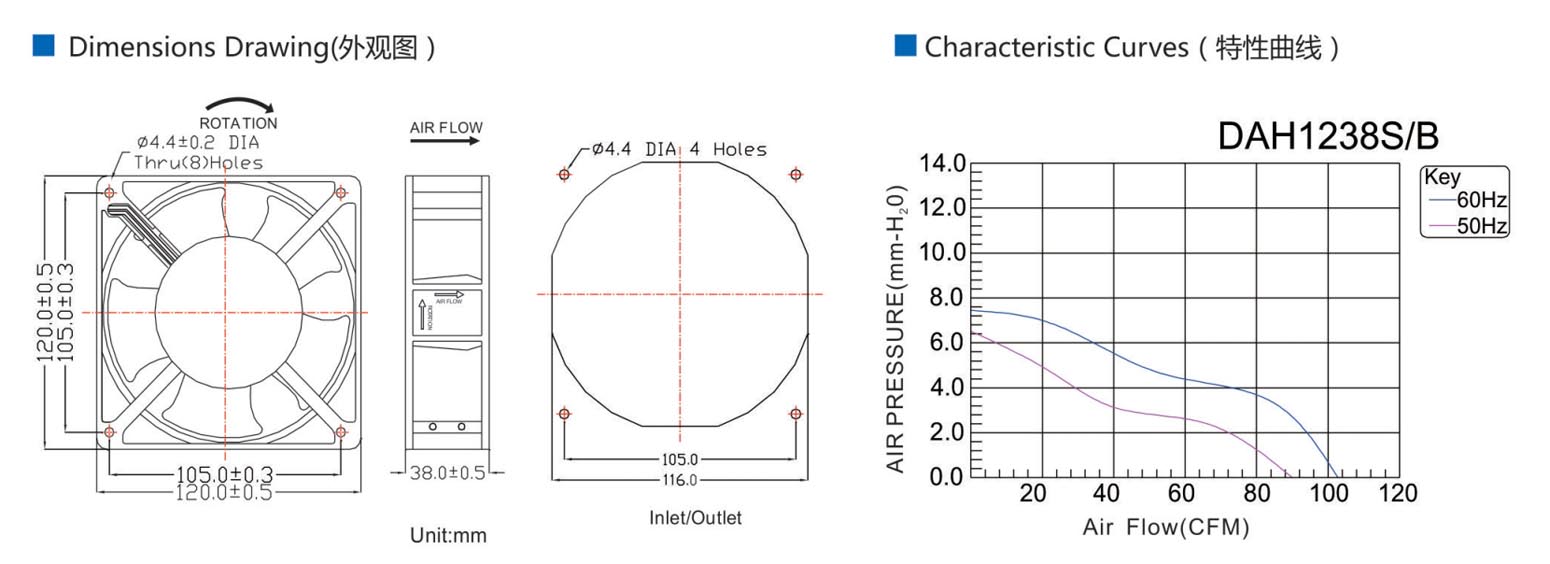

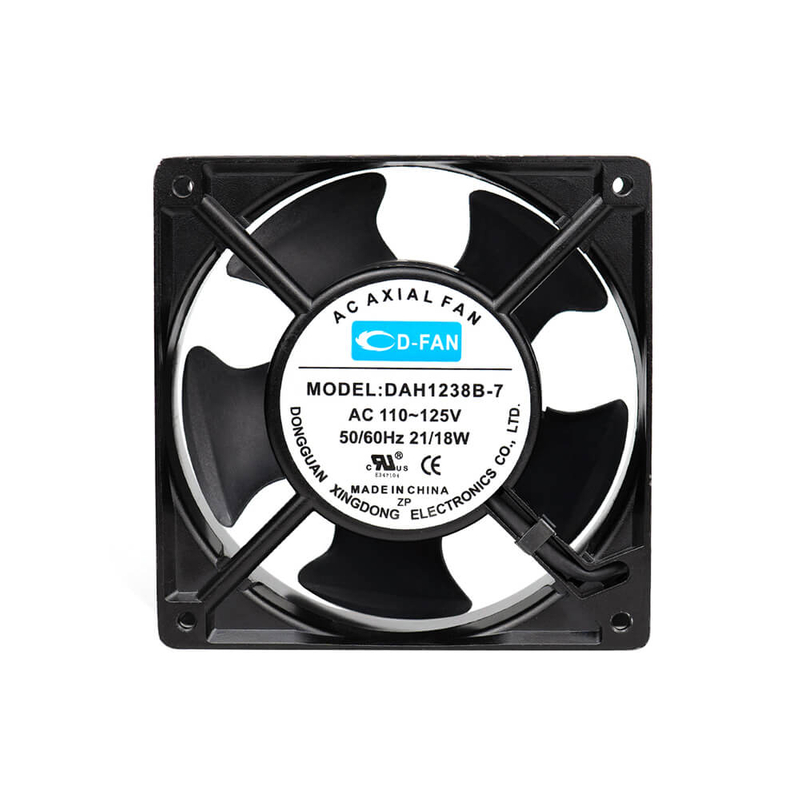

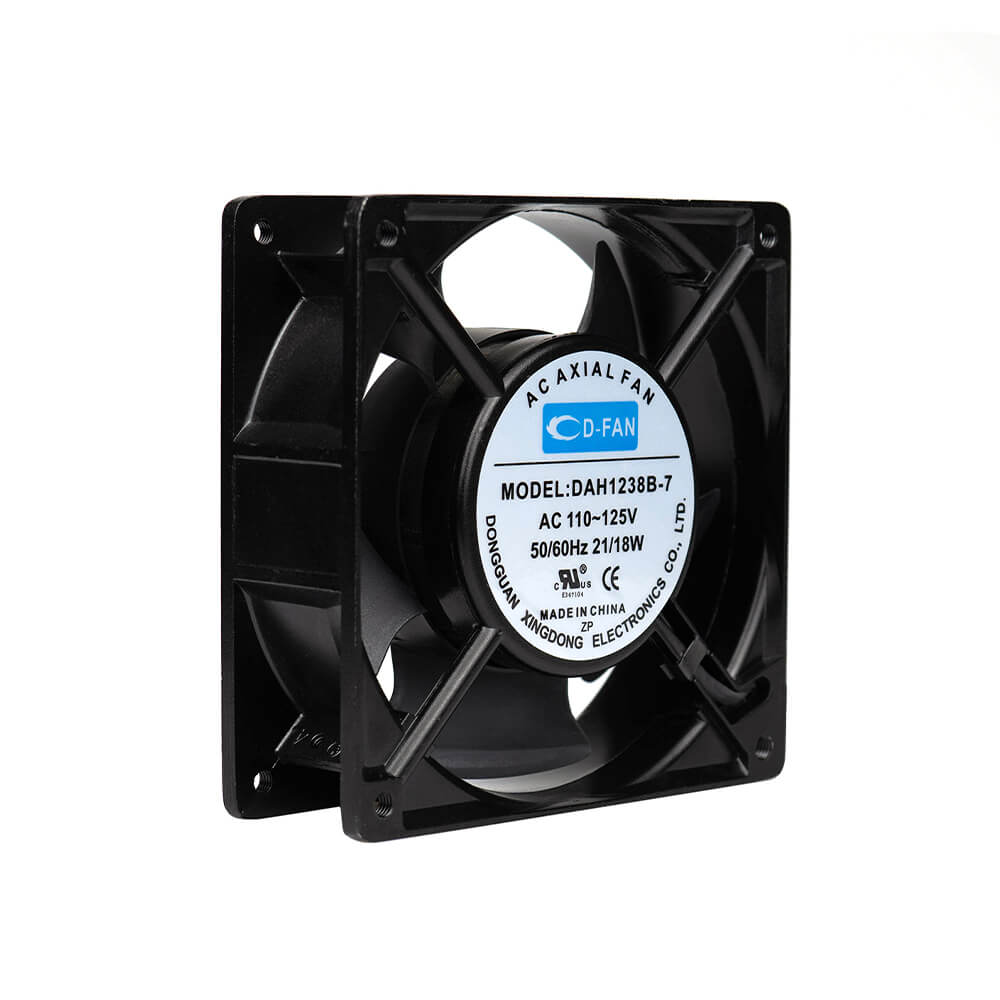

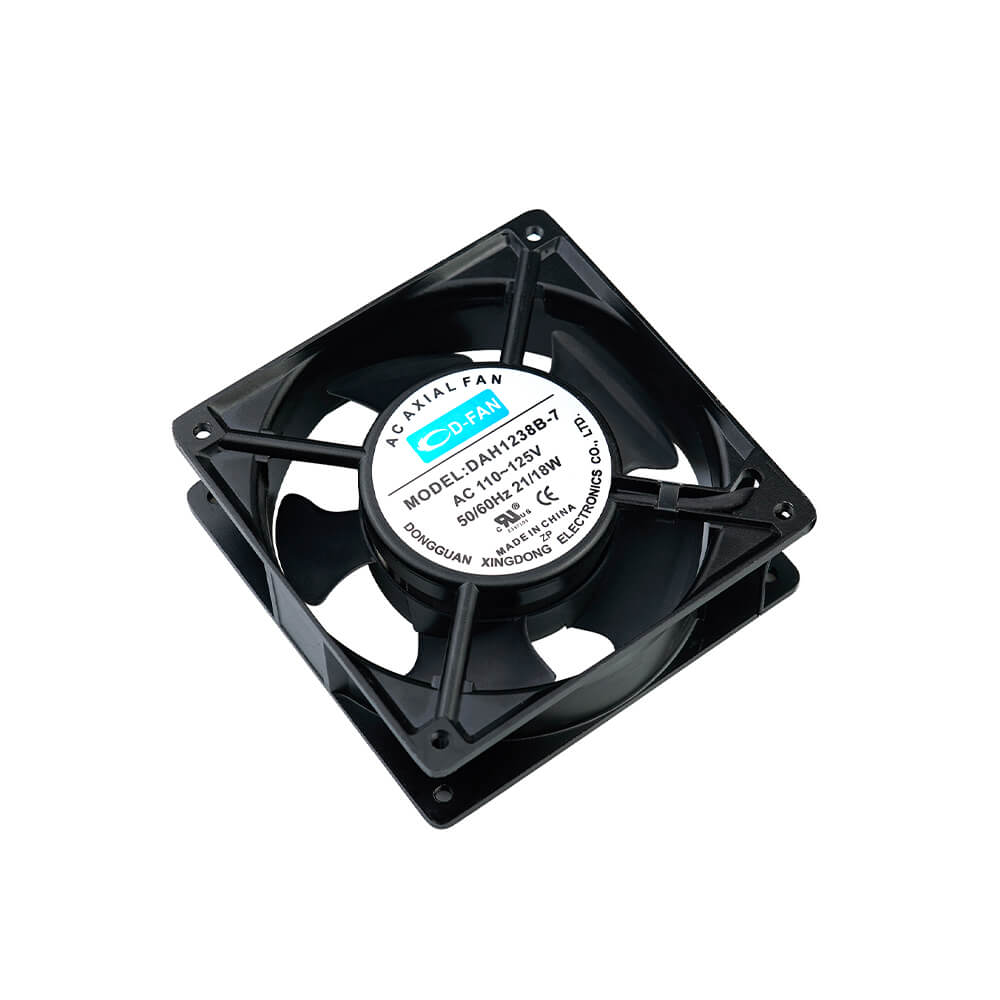

The AC Axial Fan 1238 is a robust, high-efficiency fan with dimensions of 120mm x 120mm x 38mm, designed to deliver effective cooling and ventilation across various applications. It operates on AC power ranging from 100 to 120V, providing a powerful airflow of 110 CFM at a rotational speed of 2600 RPM, making it perfect for situations where high airflow is crucial.

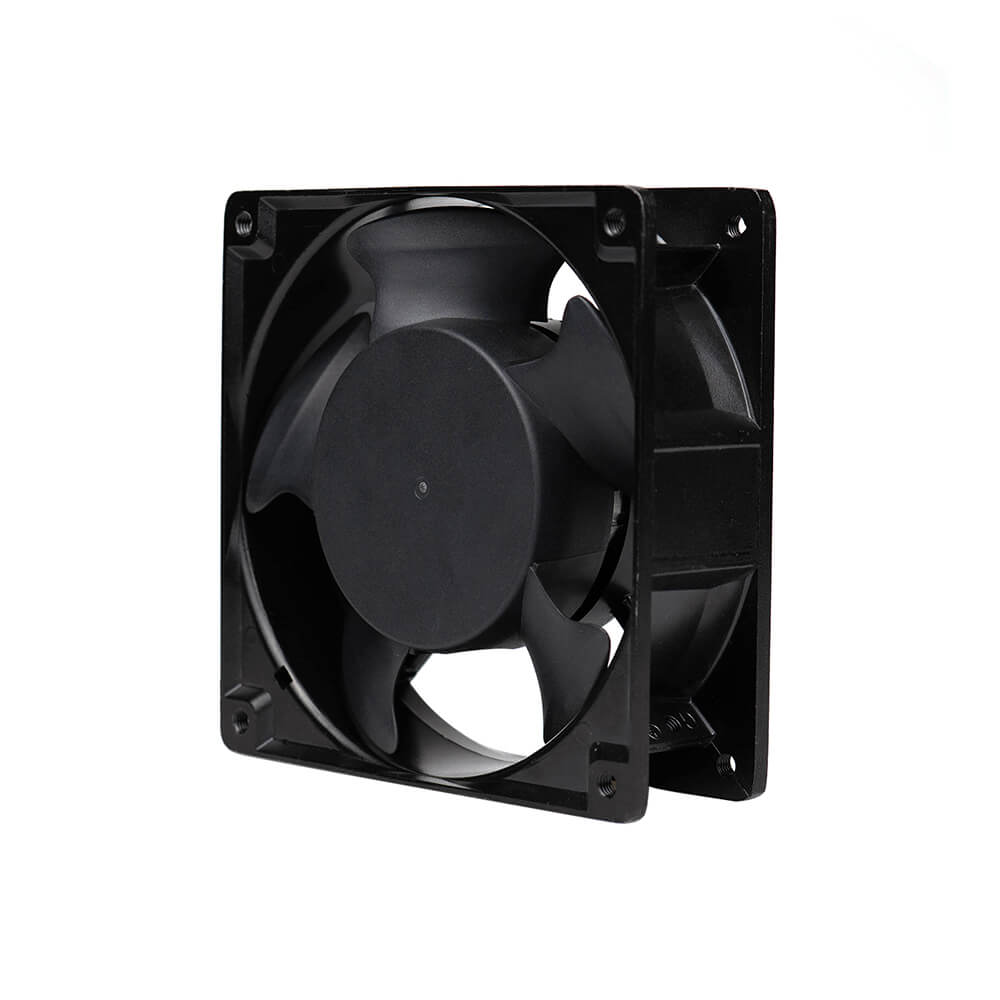

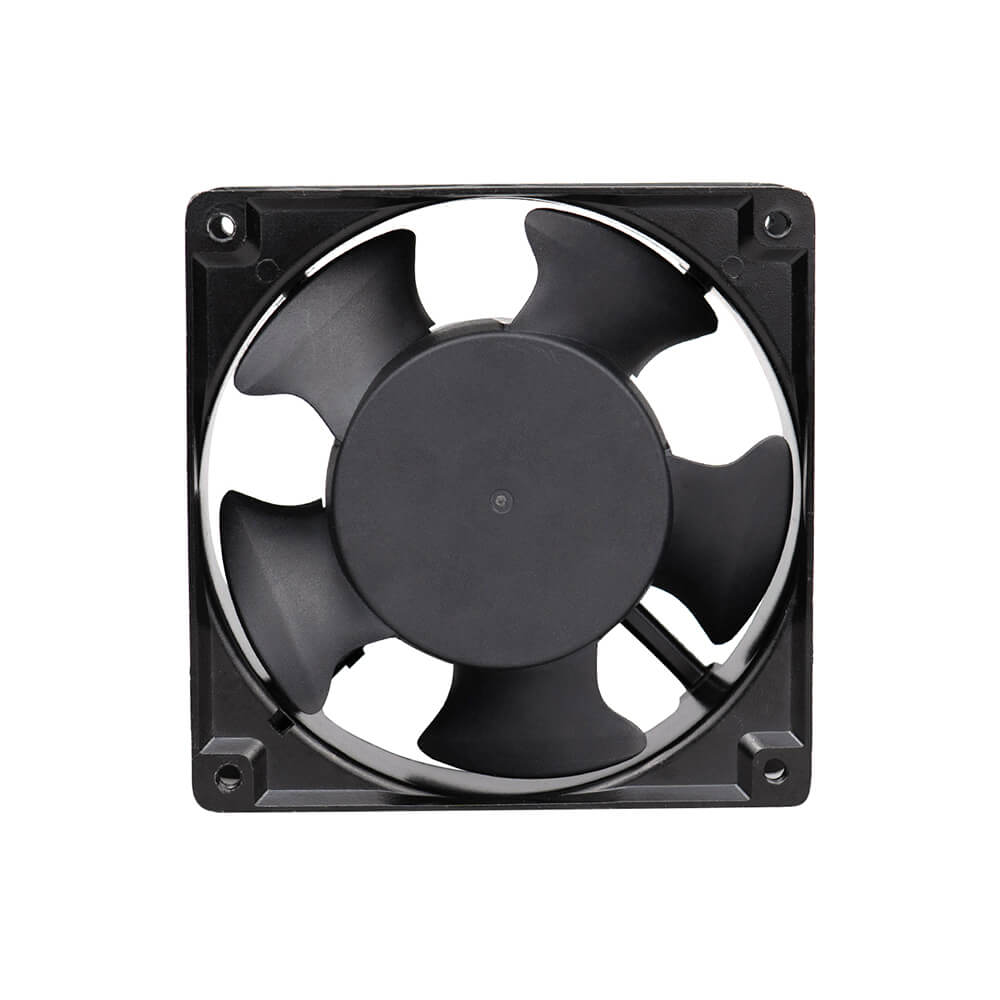

The fan's casing is constructed from die-cast aluminum with a sleek black finish, ensuring exceptional durability and resistance to mechanical impacts and challenging environments. The impeller and blades are crafted from thermoplastic PBT material, which is UL 94V-0 rated, offering excellent flame resistance for enhanced safety and durability.
This fan is equipped with long-lasting dual ball bearings, allowing for continuous operation for up to 67,000 hours. It can be installed in any orientation, whether horizontal or vertical. The motor features impedance protection, which improves heat resistance during rotor lock situations, thereby minimizing the risk of failure.
Operating at approximately 47 dBA, the fan effectively balances airflow performance with acceptable noise levels for industrial environments. It consumes 18 watts of power and draws a current of 0.16A, ensuring energy efficiency.
Included with the fan is a 4-foot power cord, two metal fan guards finished with black powder coating for safety, and a set of mounting screws, making installation straightforward and secure.
The AC Axial Fan 1238 is UL-recognized under certificate E503903 and complies with CE and RoHS standards, ensuring it meets international safety and environmental regulations.
As a premier provider of AC axial fans, we emphasize the careful selection of materials and engineering excellence in the AC Axial Fan 1238:
Housing: The die-cast aluminum frame provides a sturdy structure that can endure shocks and harsh industrial conditions.
Blades and Impeller: Constructed from thermoplastic PBT, these components comply with UL 94 flammability standards, ensuring safety under high-temperature scenarios.
Bearings: The dual ball bearings not only enhance the fan's lifespan but also allow for versatile mounting options without sacrificing performance.
Motor: The impedance-protected motor design offers improved thermal safety, enhancing reliability during extended use.
To achieve optimal performance and longevity from the AC Axial Fan 1238, adhere to the following instructions:
Compatibility Verification: Before installation, ensure that the fan’s dimensions (120 x 120 x 38 mm) and voltage specifications (100-120V AC) align with your existing system or project needs.
Power Disconnection: Always turn off the power to the previous fan or system before removal.
Mounting: Utilize the provided mounting screws and fan guards. Position the fan according to your airflow requirements; the dual ball bearings allow for installation in any orientation.
Wiring: Connect the included 4-foot power cord to the fan’s metal terminals. The cord can be plugged into a standard household outlet or cut and wired into a fixed AC power source. Ensure secure electrical connections using wire connectors or electrical tape to avoid hazards.
Safety Precautions: Install the metal fan guards on both sides to protect against foreign objects and prevent accidental contact with the blades.
Operation: After mounting and wiring, restore power. The fan will operate at full speed. For applications needing speed control, compatible controllers can be used (sold separately).
Maintenance: Regularly check the fan for dust buildup and clean the blades and guards to maintain airflow efficiency.
The AC Axial Fan 1238 is extensively utilized in settings where effective ventilation and cooling are essential:
Cooling electronic devices such as server racks, UPS systems, and industrial machinery.
Ventilation for LED signage, tanning beds, and arcade gaming systems.
Replacement fan for various industrial and commercial equipment that requires a standard 120mm axial fan.
Its durable construction, extended lifespan, and high airflow capacity make it a dependable choice for demanding cooling applications.
